    16 Keys Rugged Numeric Keypad IP67 Waterproof Stainless Steel Industrial Metal Keypad

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-B120KP-DWP
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2-3 weeks upon payment confirmed
    Price : To be quoted
    • Product Details
    • Company Profile

    16 Keys Rugged Numeric Keypad IP67 Waterproof Stainless Steel Industrial Metal Keypad

    DESCRIPTION: 16 keys compact format IP67 dynamic vandal proof Stainless Steel industrial numeric keypad with industrial metal dome PCB electronics controller shielded & protected by stainless steel housing, industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, top stainless steel plate with sealing gasket for easy & tight sealing and mounting to enclosure or panel, with threaded bolts for top panel mounting solution. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc.

    DIMENSIONS:120.0mm × 98.0mm (front panel)
    APPLICATION:
    This Keypad is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications,
    internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations
    and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones
    etc..
    ELECTRICAL DATA
    Supply Voltage: +5V DC +/-5%
    Current Rating: appr. 30mA
    EMC Standard: EN 55032:2015 EN 55035:2017
    Lifespan > 5 years
    Switch Contact Material: Gold-on-Gold key switch technology PCB.
    Interface: PS2, USB, RS232, RS485 available
    OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)
    COMMUNICATION PARAMETER
    PS2/USB:
    Standard PS2/USB keyboard interface.
    16 actuators: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, Cancel, Clear, Enter, backup key 3, 4 x 4 scanning code
    RS232:
    Standard RS232 serial interface.
    Communication velocity: 9600bps.
    Data format: N, 8, 1.
    16 actuators: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, Cancel, Clear, Enter, backup key 3, 4 x 4 scanning code.
    MECHANICAL DATA
    Actuator/keys: 16 keys, 1.50mm thickness super quality SUS304 brushed stainless steel flat key.
    Key top style: Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
    Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for function keys
    Key travel: 0.45mm
    Actuation Force: 3.2N+/-0.1N for key 14.0mm x 14.0mm (pressure point) 4.0N+/-0.1N for key 14.0mm x28.0mm (pressure point)
    Switch life: more than 1 million of operations.
    Front Plate: 1.5mm thickness super quality brushed stainless steel
    Back Plate: 1.5mm thickness super quality stainless steel
    G.W.: 0.80KGs
    Dimensions: 120.0mm x 98.0mm (L x W )
    ENVIRONMENTAL ADAPTABILITY
    Operating temperature:-20oC to +60oC
    Storage temperature: -30oC to +70oC
    Operating RH: 30-90%
    Atmospheric pressure: 60-106Kpa.
    Saline mist: 96 hours, IEC 60512-6
    Damp heat test at + 40oC: 21 days, IEC 60512-6
    Dry heat test at + 85oC: 10 days, IEC 60512-6
    RELIABILITY
    RoHS Compliant, CE and FCC, ESD
    Protection Level: IP67(front panel)
    Vandal resistant IK09
    Key Lifespan > 1 million actuations
    MTBF > 20000H
    MTTR < 30min

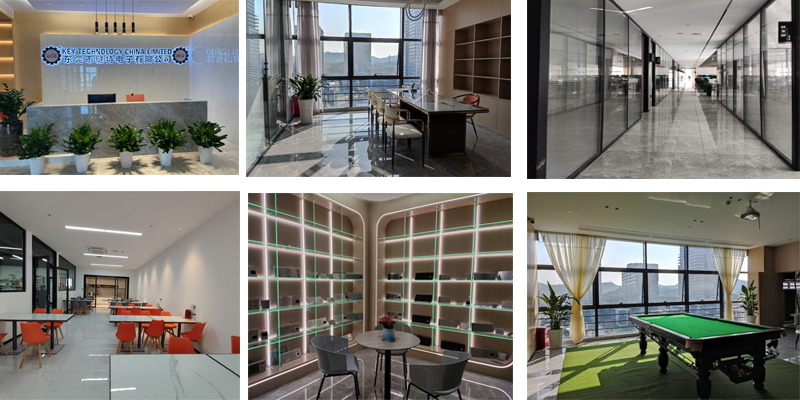

    Our Factory:
