    Industry Panel Mount Keypad 20 Keys Metal Brushed Stainless Steel Keypad

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-A101KP-20-DWP
    Certification : CE, FCC, ROHS, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2-3 weeks upon payment confirmed
    MOQ : 1 pieces
    • Product Details
    • Company Profile

    Industry Panel Mount Keypad 20 Keys Metal Brushed Stainless Steel Keypad

    New Design Industry Panel Mount Keypad Stainless Steel Metal Brushed 20 Keys Keypad

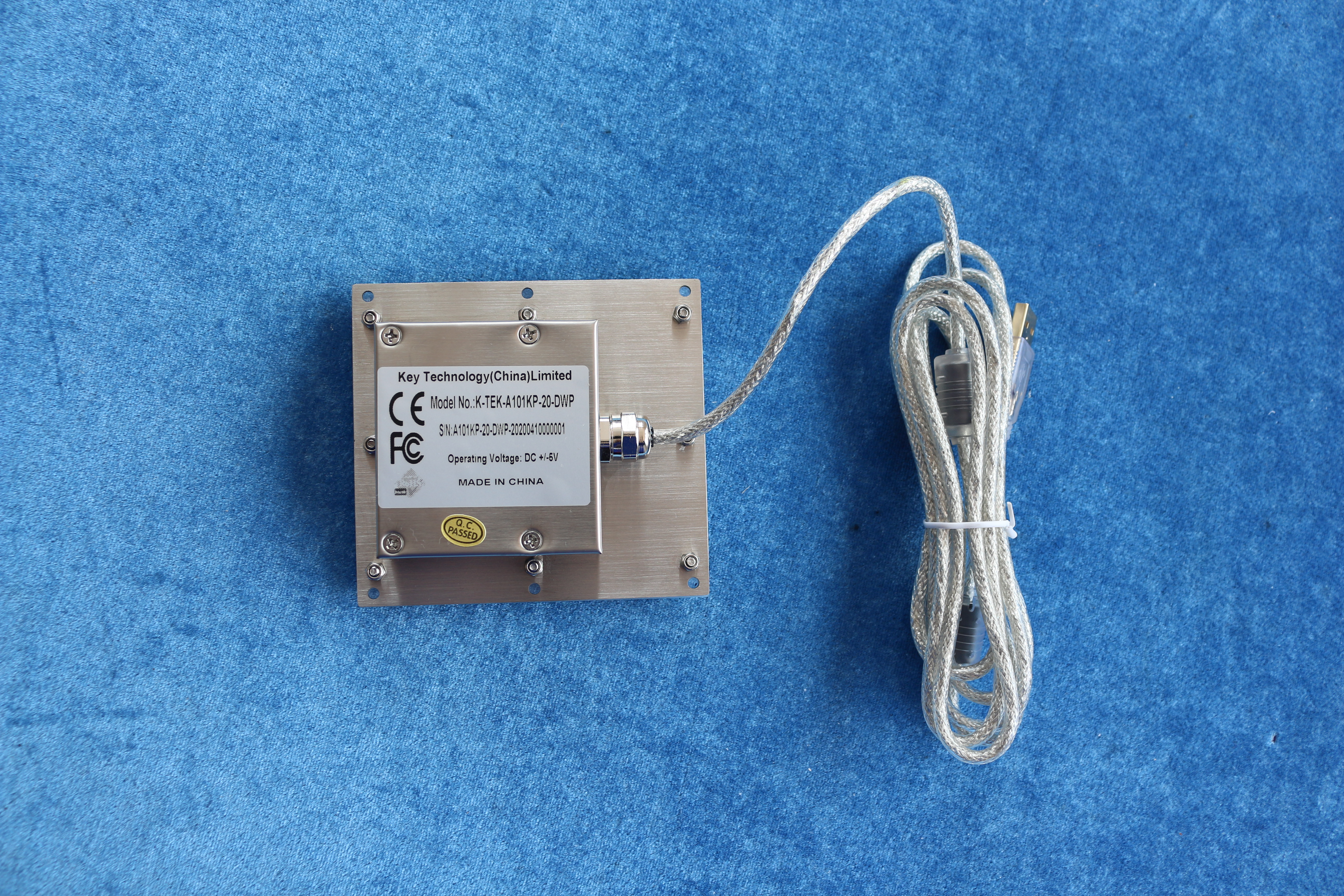

    Sepcial Features: 20 keys compact format IP67 dynamic water proof and vandal proof stainless steel industrial keypad with fully sealed industrial PCB with industrial electronics controller shielded & protected by stainless steel housing, with industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise, rear stainless steel plate with mounting holes and water-tight rubber sealing gasket for easy mounting and tightening to enclosure or panel. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc.

    DIMENSIONS: 98.0mm × 107.0mm (front panel)

    MECHANICAL DATA:


    Key20 keys
    Key top style

    Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available.

    Key Size

    14.0mm x 10.0mm for normal keys

    Switch lifemore than 5 million of operations.

    Key Size

    1.5mm thickness super quality brushed stainless steel ​

    G.W.

    0.60KGs

    Packingstandard
    ENVIRONMENTAL ADAPTABILITY
    Operating temperature
    -20oC to +60oC
    Storage temperature
    -30oC to +70oC
    Operating RH
    30-90%
    RELIABILITY
    Protection Level
    IP67(front panel
    Vandal resistant
    IK08
    Key Lifespan
    > 5 million actuations
    MTBF
    >20000H
    MTTR<30min
