    IP65 4 Keys Industrial Metal Keypad Stainless Steel Without Electronic Controller

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-B116FK
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2-3 weeks upon payment confirmed
    • Product Details
    • Company Profile

    IP65 4 Keys Industrial Metal Keypad Stainless Steel Without Electronic Controller

    IP65 4 Keys Industrial Metal Keypad Without Electronic Controller

    DESCRIPTION: 4 Keys IP65 dynamic Vandal proof Stainless Steel industrial matrix function keypad with industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, without electronics controller, with top panel mounting.

    DIMENSIONS: 116.0mm x 27.0mm
    MAIN FEATURES
    Stainless steel fascia and key-tops guard willful destruction, against corrosion, shock, dust, falling raining, splashing, hose-directed water and vandal resistant, operation under hostile environments.
    Internet friendly key layout, key-tops are sunk laser-etched in legends and characters via using high quality ink for easy readability, long life to prevent lettering rub-off. Or protrusive engraving available
    With firm tactile key feel, short travel switches, with unique double over-travel protection.
    Waterproof/dirt-proof execution according to degree of protection IP65, waterproof and dirt proof encapsulation with unique membrane.
    Easily mounting into enclosure or panel.
    MECHANICAL DATA
    Switching material: Gold-on-Gold
    Actuation Force: 2N+/-0.1N (pressure point)
    Key Travel: 0.45mm
    Lettering: laser engraving, or raised letters.
    Front panel: brushed stainless steel
    Actuator/keys materials: stainless steel
    Dimensions: 116.0mm x 27.0mm
    G.W. 0.25KGs
    Connect interface:matrix or with external controller for USB/PS2 interface optional
    ELECTRICAL DATA
    Power supply voltage: 5V DC.
    Power Consumption: Under 150mW for operation, under 50mW for non-operation
    Electrical lifetime> 5 years
    EMC Standard:: EN 55032:2015, EN 55035:2017
    OS: All windows, Linux, Unix, Mac OSX
    ENVIRONMENTAL ADAPTABILITY
    Operating temperature:-20°C to +60°C
    Storage temperature:-30°C to +70°C
    Operating RH: 30 ~ 90%
    Atmospheric pressure: 60 ~ 106Kpa.
    RELIABILITY
    RoHS Compliant, CE and FCC, ESD
    Protection Level: IP65(front panel)
    Vandal resistant IK09
    Key Lifespan >1 million actuations
    MTBF >20000h
    MTTR <30min

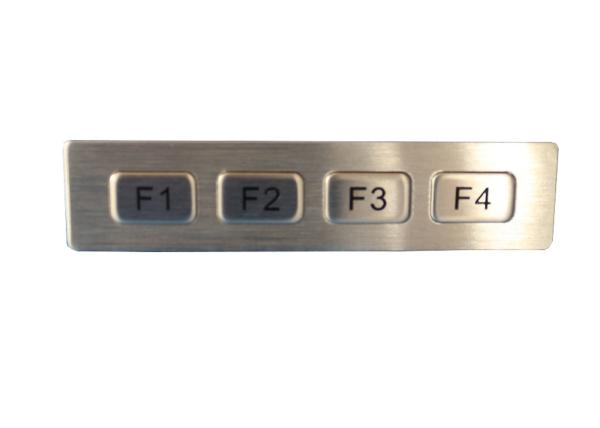

    Actual Photo:
