50.8mm Black Mechanical Trackball Computer Mouse Trackball Pointing Device

Key Technology ( China ) Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 50.8mm Black Mechanical Trackball Computer Mouse Trackball Pointing Device from wholesalers

    Buy cheap 50.8mm Black Mechanical Trackball Computer Mouse Trackball Pointing Device from wholesalers
    • Buy cheap 50.8mm Black Mechanical Trackball Computer Mouse Trackball Pointing Device from wholesalers
    • Buy cheap 50.8mm Black Mechanical Trackball Computer Mouse Trackball Pointing Device from wholesalers

    50.8mm Black Mechanical Trackball Computer Mouse Trackball Pointing Device

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-B100-50-MTB-ML-AVB
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2-3 weeks upon payment confirmed
    • Product Details
    • Company Profile

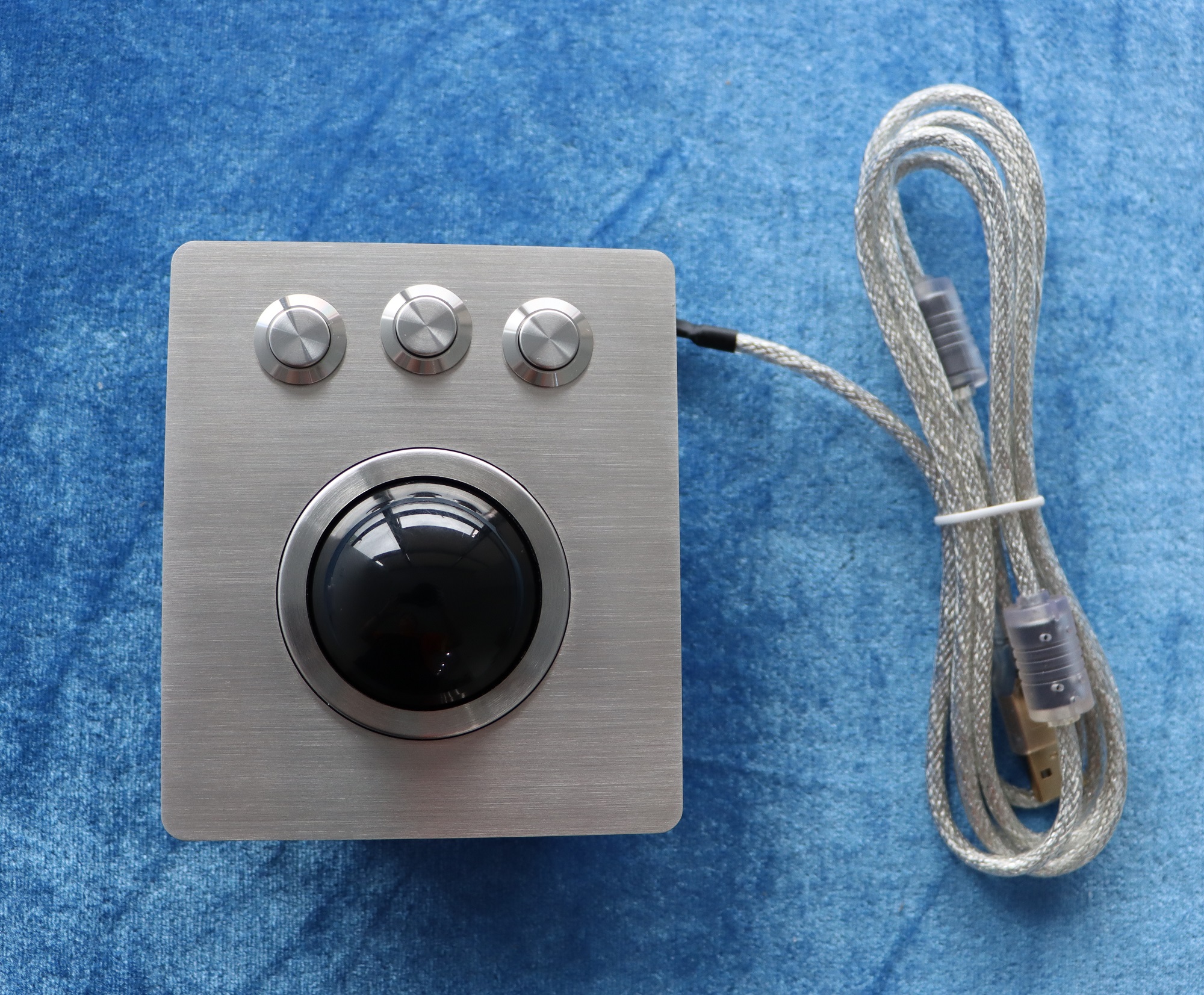

    50.8mm Black Mechanical Trackball Computer Mouse Trackball Pointing Device

    50.8mm Black Mechanical Trackball Computer Mouse Pointing Device

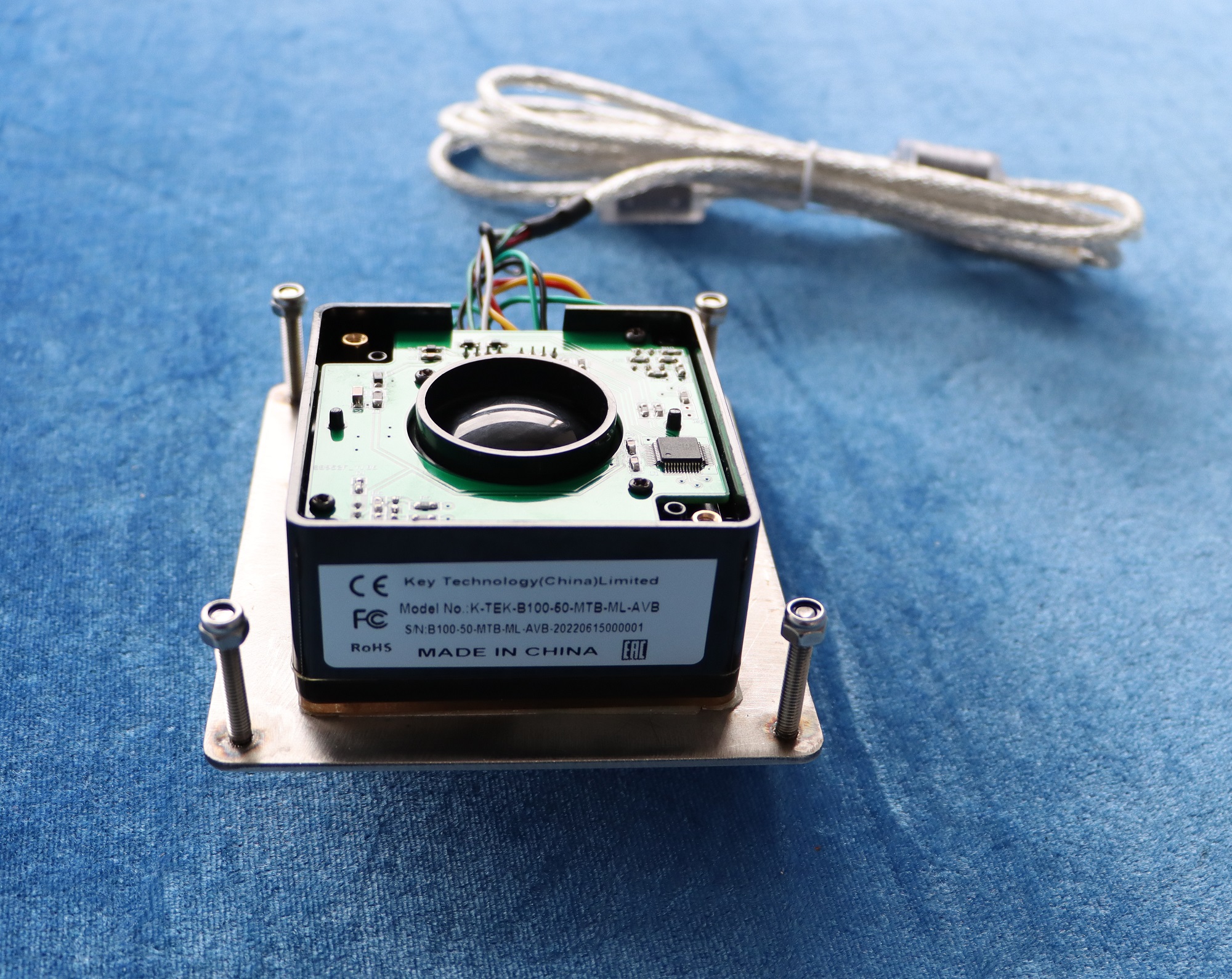

    DESCRIPTION: IP65 vandal proof trackball with 50.8mm military grade mechanical trackball module with black hardened resin ball, with 200~2000DPI resolutions, with sealed 3 metal mouse buttons for left and right clicking, middle scrolling button with ball rolling. 1.5 mm top stainless plate and threaded bolts for top panel mounting solution, with optional high quality scratch-proof black titanium electroplated on front stainless steel and optional keys to withstand salt spray, military level with wide temperature of -40°C to +60°C and strong anti-vibration.


    DIMENSIONS: 100.0mm x 116.0mm


    TECHNICAL SPECIFICATION

    ITEMSPECIFICATION
    MechanicalKey3 keys, quality brushed stainless steel
    Key top styleRugged round Keys
    Front PlateQuality brushed stainless steel
    Key Travel0.45mm
    Ball diameter50.0mm
    Key switch lifespanmore than 1 Mio actuations
    Track ball lifespan> 10 Mio revolutions
    Back Metal CoverRear side integrated electronics protected by a metal cover
    Actuation Force3.2N+/-0.1N
    Mounting RackAluminum alloy
    Dimension

    Dimensions with 50mm track ball,

    Front plate (L x W): 100 x 116

    InterfacePS2, USB are available, Y type cable with ports of PS2 and USB
    ElectricalPower supply+5V DC +/-5%
    Protection levelIP65 (front panel), IK09
    EMC StandardEN 55032:2015, EN 55035:2017
    Power consuming≤1.00W(dynamic)
    ≤0.2W(static)
    Contact MaterialGold/Carbon
    EnvironmentalOperating temperature-40ºC~+ 60º C
    Storage temperature-45ºC~+ 65ºC
    Operating RH30~90%
    Atmospheric pressure60~106Kpa.
    ReliableCertificatesRoHS compliant, CE and FCC certified, ESD
    MTBF>20000h
    MTTR< 30min
    OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)
    Packing DetailsEach unit to a suitable brown box, suitable brown boxes to a standard export carton.

    Main Features:

    1. Emulates most popular mice - uses existing mouse driver and mouse software Interfaces for most workstations and computers.

    2. All Metal Mechanicals provide for rugged, smooth, long lasting and no noisy operation.

    3. Rate Sensitive Dynamic Resolution provides for accelerated movement of the cursor when the ball is moved fast

    4. Retaining one-pixel positioning accuracy when the ball is moved slowly.

    5. Can be mounted horizontally, and vertically or any directions.

    6. No metal bearings inside, operation is very smooth, and easy without any noise.


    APPLICATIONS:
    MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;

    MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc

    MILITARY: Army, Navy, Air force

    INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing

    environments, warehouses

    MARINE: ship, boat, navigation consoles etc.

    OTHER INDUSTRIES
