108 Keys Ruggedized Industrial Membrane Keyboard OMRON Switch Technology With Backlight

Key Technology ( China ) Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 108 Keys Ruggedized Industrial Membrane Keyboard OMRON Switch Technology With Backlight from wholesalers

    Buy cheap 108 Keys Ruggedized Industrial Membrane Keyboard OMRON Switch Technology With Backlight from wholesalers
    • Buy cheap 108 Keys Ruggedized Industrial Membrane Keyboard OMRON Switch Technology With Backlight from wholesalers
    • Buy cheap 108 Keys Ruggedized Industrial Membrane Keyboard OMRON Switch Technology With Backlight from wholesalers
    • Buy cheap 108 Keys Ruggedized Industrial Membrane Keyboard OMRON Switch Technology With Backlight from wholesalers

    108 Keys Ruggedized Industrial Membrane Keyboard OMRON Switch Technology With Backlight

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-D410TP-KP-FN-BL-SW
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2-3 weeks upon payment confirmed
    • Product Details
    • Company Profile

    108 Keys Ruggedized Industrial Membrane Keyboard OMRON Switch Technology With Backlight

    108 Keys Ruggedized Industrial Membrane Keyboard OMRON Switch Technology With Backlight

    DESCRIPTION: 108 keys IP67 dynamic rated industrial membrane keyboard with integrated numeric keypad and function keys on the upper line, IP65 dynamic sealed and ruggedized tough touchpad for fast and accurate cursor position, 2.0mm thickness industrial PCB with OMRON switch technology with short stroke 0.45mm with extremely good tactile feeling for reliable data input, with “FN+Lock” key combination for easy cleaning via lock/disable the entire keyboard without needing to take the keyboard from PC, surface mounted extremely flush with anti-microbial, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments, ruggedized and backed with 1.5mm stainless steel plate with brushed treatment, with top panel mounted solution. With adjustable white backlight included to fit for dim conditions.


    DIMENSIONS: 410.0mm x 160.0mm (top panel)

    Application:

    This keyboard is ideal for use in environments ranging from manufacturing to material handling to medical settings. Its numeric pad allows for easy data entry.
    lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
    MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
    MILITARY: Army, Navy, Air force
    INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing
    environments, warehouses etc
    OTHER INDUSTRIES
    MECHANICAL DATA:
    Keys:108 keys
    Key top style:
    OMRON switch technology with short stroke 0.45mm for stable and accurate data input
    Actuation Force:
    1.4N+/-0.1N for key 13.0mm x 13.0mm (press point)
    Switch life:more than 1 million of operations.
    G.W.:1.30KGs
    Dimensions:
    410.0mm x 160.0mm (Front Panel)
    ELECTRICAL DATA :
    Supply Voltage:+5V DC +/-5%
    Current Rating:appr. 250mA
    EMC Standard:EN 55032:2015, EN 55035:2017
    Lifespan> 5 years
    Interface:PS2, USB available
    OS:All Windows, Linux, Unix, Mac OSX, Android
    RELIABILITY:
    RoHS Compliant, CE and FCC, ESD
    Protection Level:IP67(front panel)
    Key Lifespan>1 million actuations
    MTBF

    >20000H

    MTTR<30min
    ENVIRONMENTAL ADAPTABILITY :
    Operating Temperature:-20oC to +60oC
    Storage Temperature:-30oC to +70oC
    Operating RH:30-90%
    Atmospheric Pressure:60-106Kpa
    Saline mist:96 hours, IEC 60512-6
    Damp heat test at +40oC:21 days, IEC 60512-6
    Dry heat test at + 85oC:10 days, IEC 60512-6

    Industrial Membrane Keyboard Actual Photos:

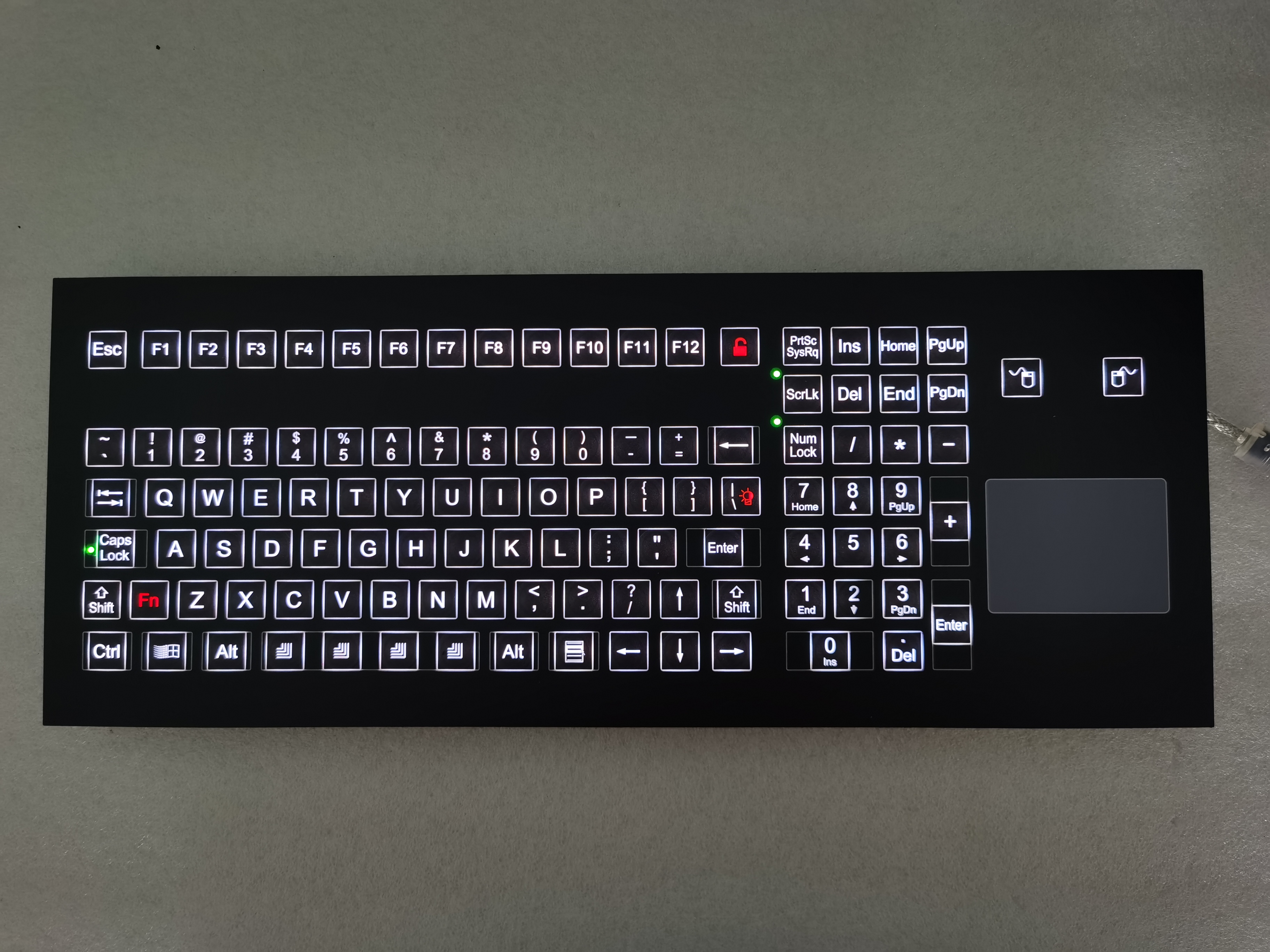

    Keyboard with backlight

    Back View


    FAQ

    Q: Are you trading company or manufacturer ?

    A: We are a professional manufacturer for industry/military/medical/vehicle keyboards.


    Q: How long is your delivery time?

    A: Generally it is 1-2 Weeks after payment is received. If larger quantity, delivery time would be 3-5 weeks.


    Q: Do you provide samples ?

    A: Yes, we could offer the sample of one quantity first before large quantity orders.


    Q: What is your terms of payment ?

    A: 100% payment via Paypal T/T, Western Union or Alibaba Trade Assurance.
    If you have another question, pls feel free to contact us.
