Industrial Ruggedized Keyboard Built In Trackball Vandal Proof Brushed Stainless Steel

Key Technology ( China ) Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Industrial Ruggedized Keyboard Built In Trackball Vandal Proof Brushed Stainless Steel from wholesalers

    Buy cheap Industrial Ruggedized Keyboard Built In Trackball Vandal Proof Brushed Stainless Steel from wholesalers
    • Buy cheap Industrial Ruggedized Keyboard Built In Trackball Vandal Proof Brushed Stainless Steel from wholesalers
    • Buy cheap Industrial Ruggedized Keyboard Built In Trackball Vandal Proof Brushed Stainless Steel from wholesalers

    Industrial Ruggedized Keyboard Built In Trackball Vandal Proof Brushed Stainless Steel

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-A361-MTB-FN-DWP
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2-3 weeks upon payment confirmed
    • Product Details
    • Company Profile

    Industrial Ruggedized Keyboard Built In Trackball Vandal Proof Brushed Stainless Steel

    Ruggedized Industrial Keyboard With Built In Trackball Vandal Proof

    DESCRIPTION:
    86 keys compact format IP67 vandal proof stainless steel industrial keyboard with IP65 38.0mm stainless steel mechanical trackball
    module with 400 DPI resolutions for fast and accurate cursor position, industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise, functional keys F1, F2, F3…F10, F11, F12 are on the top line for easy operation. 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, one complete sealing silicone rubber under top stainless steel plate for easy mounting & sealing tightly with cabinet, top stainless steel plate with side threaded bolts for top panel mounting solution. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc.

    DIMENSIONS: 361.0mm x 145.0mm (top panel)

    Application:
    -This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications.
    - internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations
    -Other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.

    MECHANICAL DATA:
    Actuator/keys:86 keys, super quality SUS304 brushed stainless steel
    Key top style:Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
    Key Size:14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar.
    Actuation Force:1.2 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 2.0 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
    Switch life:more than 5 million of operations.
    Front Plate:1.5mm thickness super quality brushed stainless steel
    Back Plate:3.0mm thickness brushed & oxidized aluminium
    Tracker ball:
    38.1mm (1.5’) diameter, IP65 static mechanical trackba
    G.W.:2.0KGs
    Dimensions:361.0mm x 145.0mm (front panel) , 343.0mm x 123.0mm (back panel)
    ELECTRICAL DATA :
    Supply Voltage:+5V DC +/-5%
    Current Rating:appr. 50mA
    EMC Standard:EN 55032:2015, EN 55035:2017
    Lifespan> 5 years
    Switch Contact Material:Carbon-on-Gold key switch technology PCB
    Interface:PS2, USB available
    OS:All Windows, Linux, Unix, Mac OSX, Android
    RELIABILITY:
    RoHS Compliant, CE and FCC, ESD
    Protection Level:
    IP67(keyboard) + IP65(trackball)
    Vandal resistantIK08
    Key Lifespan>5 million actuations
    MTBF

    >20000H

    MTTR<30min
    ENVIRONMENTAL ADAPTABILITY :
    Operating Temperature:-20oC to +60oC
    Storage Temperature:-30oC to +70oC
    Operating RH:30-90%
    Atmospheric Pressure:60-106Kpa
    Saline mist:96 hours, IEC 60512-6
    Damp heat test at +40oC:21 days, IEC 60512-6
    Dry heat test at + 85oC:10 days, IEC 60512-6


    Actual Photos:

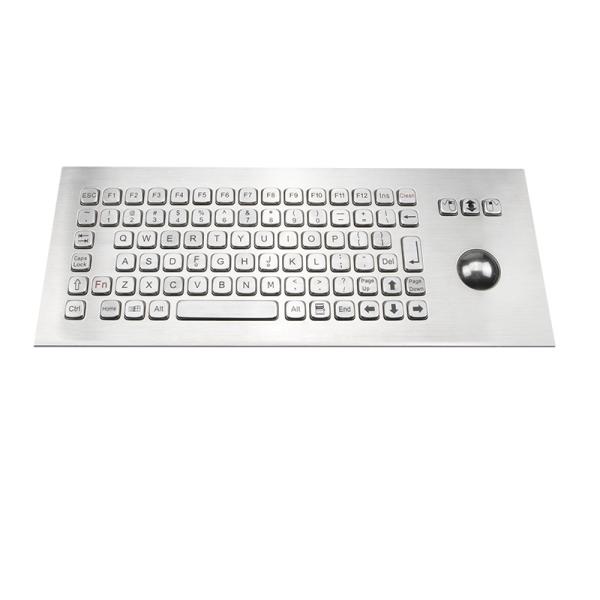

    Keyboard without backlight

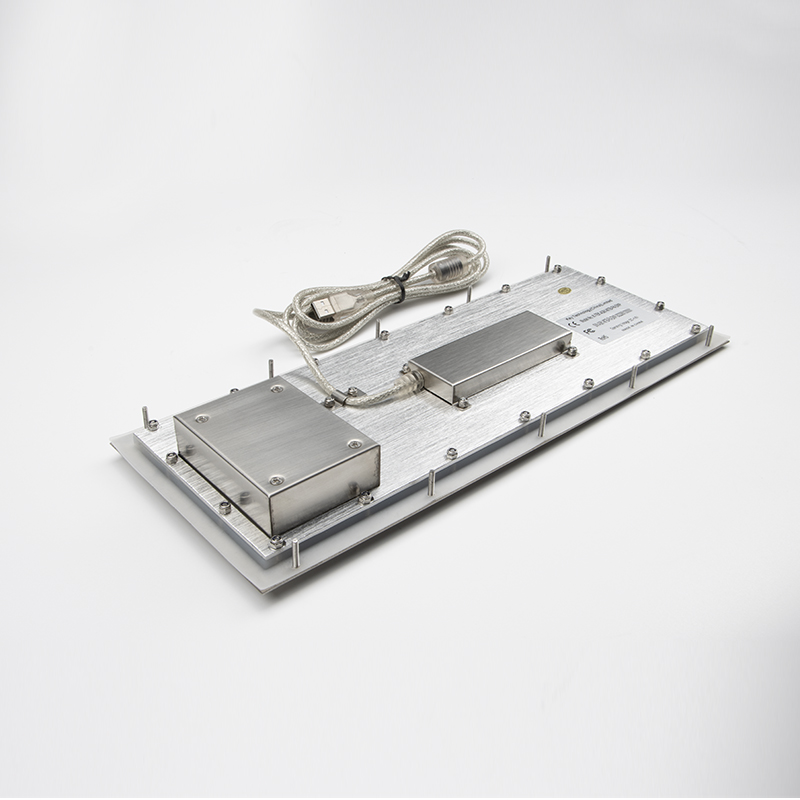

    Back View



    FAQ

    Q: Are you trading company or manufacturer ?

    A: We are a professional manufacturer for industry/military/medical/vehicle keyboards.


    Q: How long is your delivery time?

    A: Generally it is 1-2 Weeks after payment is received. If larger quantity, delivery time would be 3-5 weeks.


    Q: Do you provide samples ?

    A: Yes, we could offer the sample of one quantity first before large quantity orders.


    Q: What is your terms of payment ?

    A: 100% payment via Paypal T/T, Western Union or Alibaba Trade Assurance.
    If you have another question, pls feel free to contact us.
