Custom Ruggedized Keyboard Vandal Proof Waterproof Backlight Keyboard

    Buy cheap Custom Ruggedized Keyboard Vandal Proof Waterproof Backlight Keyboard from wholesalers

    Buy cheap Custom Ruggedized Keyboard Vandal Proof Waterproof Backlight Keyboard from wholesalers
    • Buy cheap Custom Ruggedized Keyboard Vandal Proof Waterproof Backlight Keyboard from wholesalers
    • Buy cheap Custom Ruggedized Keyboard Vandal Proof Waterproof Backlight Keyboard from wholesalers

    Custom Ruggedized Keyboard Vandal Proof Waterproof Backlight Keyboard

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-M334KP-FN-BL-ML-DWP
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2-3 weeks upon payment confirmed
    • Product Details
    • Company Profile

    Custom Ruggedized Keyboard Vandal Proof Waterproof Backlight Keyboard

    Ruggedized Custom Keyboard Vandal Proof Waterproof Backlight Keyboard

    DESCRIPTION:

    101 keys IP67 dynamic water proof vandal proof ruggedized industrial keyboard with wide temperature, with durable polymer keys and 12 function keys F1, F2, ... F12 on the top line of keyboard. The high quality ruggedized aluminum alloy top panel is processed by CNC, industrial sealed and ruggedized PCB with carbon-on-gold key switch technology with stroke 1.0mm with extremely good tactile feeling for fast and accurate data input without any noise, high quality durable black titanium spray-paint on the aluminum alloy panel , one complete silicone rubber along the top panel for easy mounting & sealing tightly with cabinet, front panel with countersunk hole for easy top panel mounting and maintenance. Adjustable backlight included ( White or Red etc). FN + Clean combination keys for easy cleaning without taking the keyboard away from PC, and avoid mis-operation or mis-typing. USB or matrix output optional.
    Dimensions: 334.0mm x 118.0mm (front panel)


    Application:

    This ruggedized keyboard can be good for working in low-light areas, it is also available with LED backlight. This keyboard is ideal for below wide applications:
    MEDICAL: Lab, hospital, clinic, dental, such as carts, diagnostic equipment, operation rooms, dialysis centers etc;
    MATERIAL HANDLING: Mobile keyboard, data entry, assembly line etc
    MILITARY: Army, Navy, Air force
    INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, Warehouses, marine console.
    MECHANICAL DATA:
    Actuator/keys:
    101 keys, durable and robust polymer keys
    Key top style:Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
    Key travel
    1.0mm
    Actuation Force:
    1.80 N+/-0.1N for key 13.6mm x 13.6mm (pressure point ), 2.5 N+/-0.10N for key 13.6mm x
    31.6mm (pressure point)
    Switch life:more than 5 million of operations.
    Plate:
    High quality ruggedized aluminum alloy top panel is processed by CNC
    G.W.:0.5KGs
    Dimensions:
    334.0mm x 118.0mm (front panel)
    ELECTRICAL DATA :
    Supply Voltage:+5V DC +/-5%
    Current Rating:appr. 300mA
    EMC Standard:EN 55032:2015, EN 55035:2017
    Lifespan> 5 years
    Switch Contact Material:Carbon-on-Gold key switch technology industrial PCB
    Interface:
    USB/matrix available
    OS:All Windows, Linux, Unix, Mac OSX, Android
    RUGGEDIZED KEYBOARD RELIABILITY:
    RoHS Compliant, CE and FCC, ESD
    Protection Level:IP67(front panel)
    Vandal resistantIK08
    Key Lifespan>5 million actuations
    MTBF

    >20000H

    MTTR<30min
    ENVIRONMENTAL ADAPTABILITY :
    Operating Temperature:-40oC to +60oC
    Storage Temperature:-45oC to +70oC
    Operating RH:3-95%
    Atmospheric Pressure:60-106Kpa
    Saline mist:96 hours, IEC 60512-6
    Damp heat test at+40oC:21 days, IEC 60512-6
    Dry heat test at + 85oC:10 days, IEC 60512-6

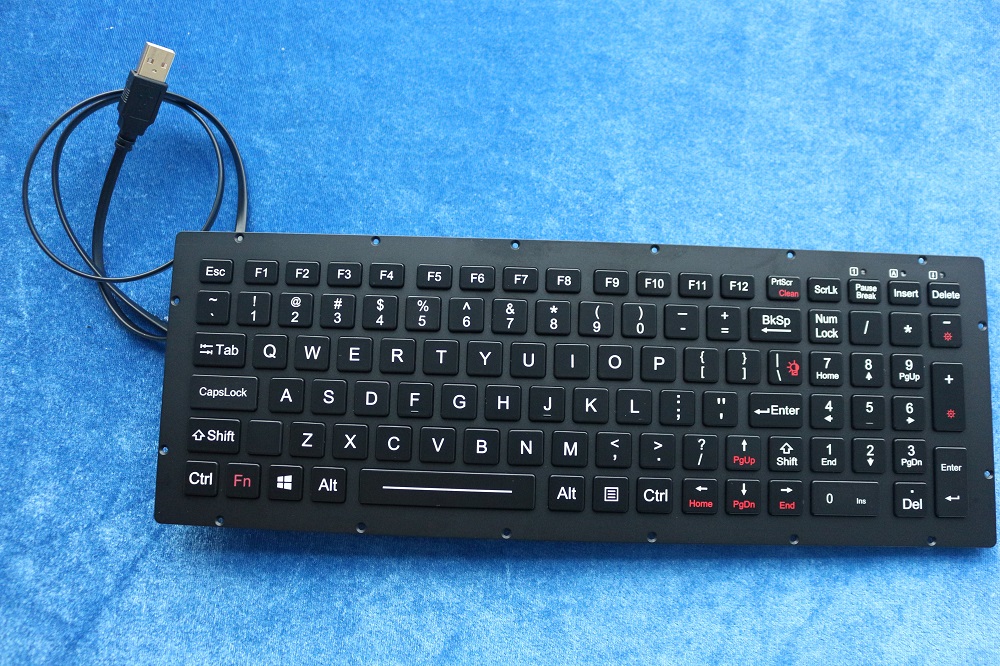

    Actual Photos:

    Keyboard without backlight

    Back View


    FAQ

    Q: Are you trading company or manufacturer ?

    A: We are a professional manufacturer for industry/military/medical/vehicle keyboards.


    Q: How long is your delivery time?

    A: Generally it is 1-2 Weeks after payment is received. If larger quantity, delivery time would be 3-5 weeks.


    Q: Do you provide samples ?

    A: Yes, we could offer the sample of one quantity first before large quantity orders.


    Q: What is your terms of payment ?

    A: 100% payment via Paypal T/T, Western Union or Alibaba Trade Assurance.
    If you have another question, pls feel free to contact us.
