    One Mouse Button Industrial Touchpad Mouse Black Titanium Top Panel Mount

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-B130TP-BT-DWP
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    One Mouse Button Industrial Touchpad Mouse Black Titanium Top Panel Mount


    Black Titanium Stainless Steel One Mouse Button Touchpad Mouse Industrial Pointing Device


    Hightlights:

    1. IP67 dynamic waterproof Sealed and Ruggedized Tough Touchpad for fast and accurate cursor position.
    2. High quality durable black titanium electroplated on the top stainless steel plate, scratch-resistant .
    3. With threaded bolts for top panel mounting solution.
    4. One complete silicone rubber alone the top stainless steel plate for easy mounting & sealing tightly with cabinet.

    Application:

    Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water,oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.


    TECHNICAL SPECIFICATION

    ITEMSPECIFICATION
    MechanicalFront PlateQuality brushed stainless steel
    Touchpad thickness1.5 mm PCB thickness inclusive of mylar layer
    Validated touch width58.0mm (max)
    Validated touch length90.0mm (max)
    Mounting Racktop stainless steel plate with mounting screw bolts
    Back Metal CoverRear side integrated electronics protected by a metal cover
    Touchpad lifespan> 5 years
    Dimensions

    Touchpad: 58.0mm x 90.0mm;

    Front Mounting Panel: 130.0mm x 105.0mm x 17.5mm (L x W x H)

    InterfacePS2 and USB both available
    ElectricalPower supply5 V DC ± 0.25V
    Work current17 mA (normal)
    X/Y position sensing resolution:1000 points/inch (40 points/mm)
    X/Y position reporting:Relative
    Tracking speed:Maximum 1,016 m/sec
    Protection level:IP67 dynamic (front panel), IK09
    Static Release:15 KV (front panel)
    EMC Standard:EN 55032:2015, EN 55035:2017
    EnvironmentalOperating temperature:-20°C to +60°C
    Storage temperature:- 30°C to + 70°C
    Operating RH:10%-95%
    Atmospheric pressure:60-106Kpa
    ReliabilityMTBF>20000H
    MTTR< 30min
    Key Switch Lifespan>1 million actuations
    OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)
    Packing DetailsEach unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton.

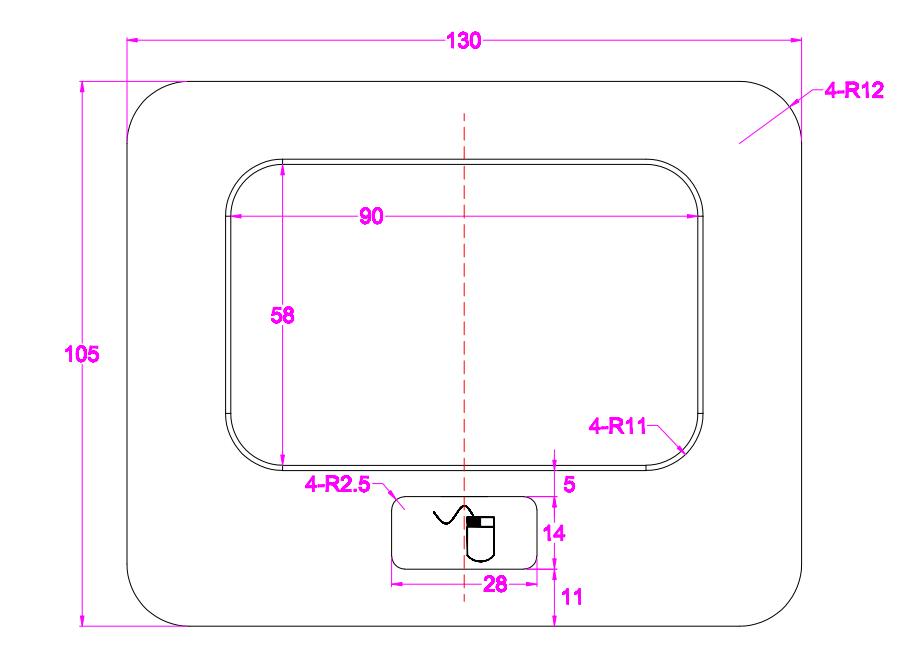

    Mechanical Drawing:

    Product Pictures:

    Our Company:

    One Mouse Button Industrial Touchpad Mouse Black Titanium Top Panel Mount

    One Mouse Button Industrial Touchpad Mouse Black Titanium Top Panel Mount

    One Mouse Button Industrial Touchpad Mouse Black Titanium Top Panel Mount
