    Black Titanium Electroplated Stainless Steel Waterproof Touchpad Customized Layout

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-A80TP-BT-UT-IL-DWP
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    Black Titanium Electroplated Stainless Steel Waterproof Touchpad Customized Layout

    Black Titanium Electroplated Stainless Steel Touchpad Mouse Industrial Pointing Device


    Model NO:K-TEK-A80TP-BT-UT-IL-DWP


    Description: IP67 dynamic Sealed and Ruggedized Tough Touchpad for fast and accurate cursor position, with 2 raised IP65 dynamic sealed stainless steel mouse buttons under touchpad, the electronics controller module shielded and protected with stainless steel housing, high quality durable black titanium electroplated on the top stainless steel plate, with rear panel mounting solution. One complete silicone rubber alone the rear stainless steel plate for easy mounting & sealing tightly with cabinet.

    Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water,oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.

    Dimension: 80.0mm x 80.0mm (front panel)

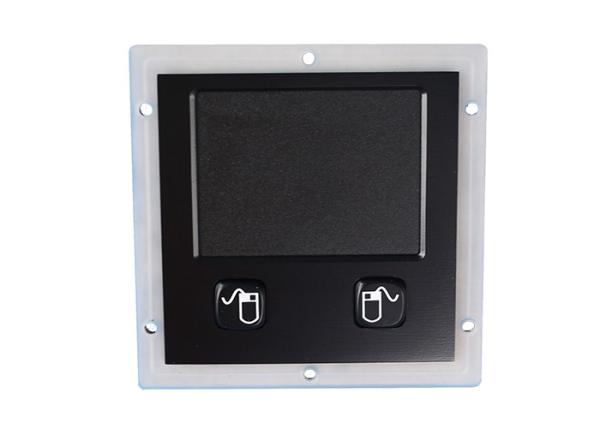

    Product Pictures:


    Mechanical Drawing:

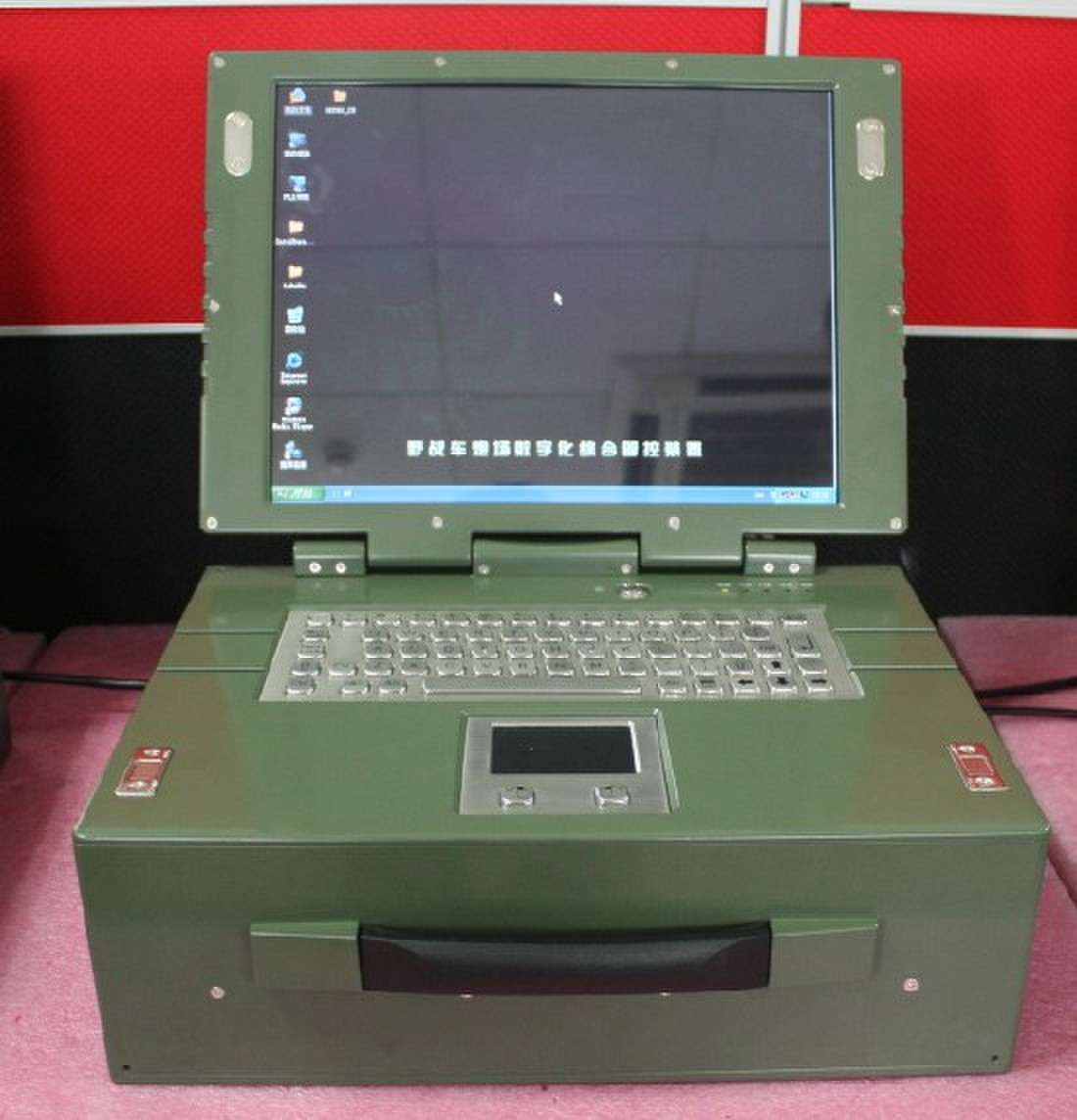

    Applications:

    TECHNICAL SPECIFICATION

    ITEMSPECIFICATION
    MechanicalFront PlateQuality brushed stainless steel
    Touchpad thickness1.3 mm PCB thickness inclusive of mylar layer
    Validated touch width45.00mm (max)
    Validated touch length60.00mm (max)
    Mounting RackAluminum alloy
    Back Metal CoverRear side integrated electronics protected by a metal cover
    Touchpad lifespan> 5 years
    Dimensions

    Touchpad: 60.0mm x 45.0mm;

    Front Mounting Panel: 80.0mm x 80.0mm (front panel),

    Rear Mounting Panel: 95.0mm x 95.0mm

    InterfacePS2 and USB both available
    ElectricalPower supply5 VDC ± 0.25V
    Work current17mA (normal)
    X/Y position sensing resolution:1000 points/inch (40 points/mm)
    X/Y position reporting:Relative
    Tracking speed:Maximum 1,016 m/sec
    Protection level:IP67 dynamic (front panel)
    Static Release:15 KV (front panel)
    EMC Standard:EN 55032:2015, EN 55035:2017
    EnvironmentalOperating temperature:-20°C to +60°C
    Storage temperature:- 30°C to + 70°C
    Operating RH:10%-95%
    Atmospheric pressure:60-106Kpa
    ReliabilityMTBF>20000h
    MTTR< 30min
    Key switch lifespan>5 million actuations
    OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)
    Packing DetailsEach unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton.
