    85 Keys IP65 Desk Top Metal Industrial Keyboard With Trackball Customized Layout

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-M380-LTB-FN-DT-BL-BT
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    85 Keys IP65 Desk Top Metal Industrial Keyboard With Trackball Customized Layout

    Black 85 Keys IP65 Desk Top Metal Industrial Backlight Keyboard With Trackball


    DESCRIPTION:

    85 keys IP65 dynamic vandal proof movable stand alone desk top industrial & military keyboard with adjustable industrial backlight and IP68 dynamic 38.0mm washable stainless steel optical trackball module with 800 DPI resolutions, with FN (F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12) on the top line for easy operation, with industrial PCB with carbon-on-gold key switch technology with key stroke 1.50mm with extremely good tactile feeling for fast and accurate input without any noise, red clean key lock/disable the keyboard for cleaning and washing without needing to take out the keyboard from PC, high quality durable black titanium electroplated on stainless steel desk top housing included.

    DIMENSIONS: 393.0mm x 154.5mm x 36.0mm (L x W x H)


    Specifications:
    Model NO:K-TEK-M380-LTB-FN-DT-BL-BT
    Number of Keys :85 keys
    DIMENSIONS:393.0mm x 154.5mm x 36.0mm (L x W x H)
    Material:Stainless Steel
    Interface:USB ; PS/2; Y cable
    Working voltage:+5V DC +/-5%
    Working current:40mA (without backlight off); 240mA (with backlight on);
    Operating temperature:-20℃ to +60℃
    Storage temperature:-30℃ to +70℃
    Key travel:1.5mm
    Key life:10 millions
    Key Size:11.4mm x 11.4mm for normal keys, 11.4mm x 24.3mm for enter key, 11.4mm x 71.8mm for space bar.
    Cable length:2m
    Weight:2.50KGs
    Compatible system:All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

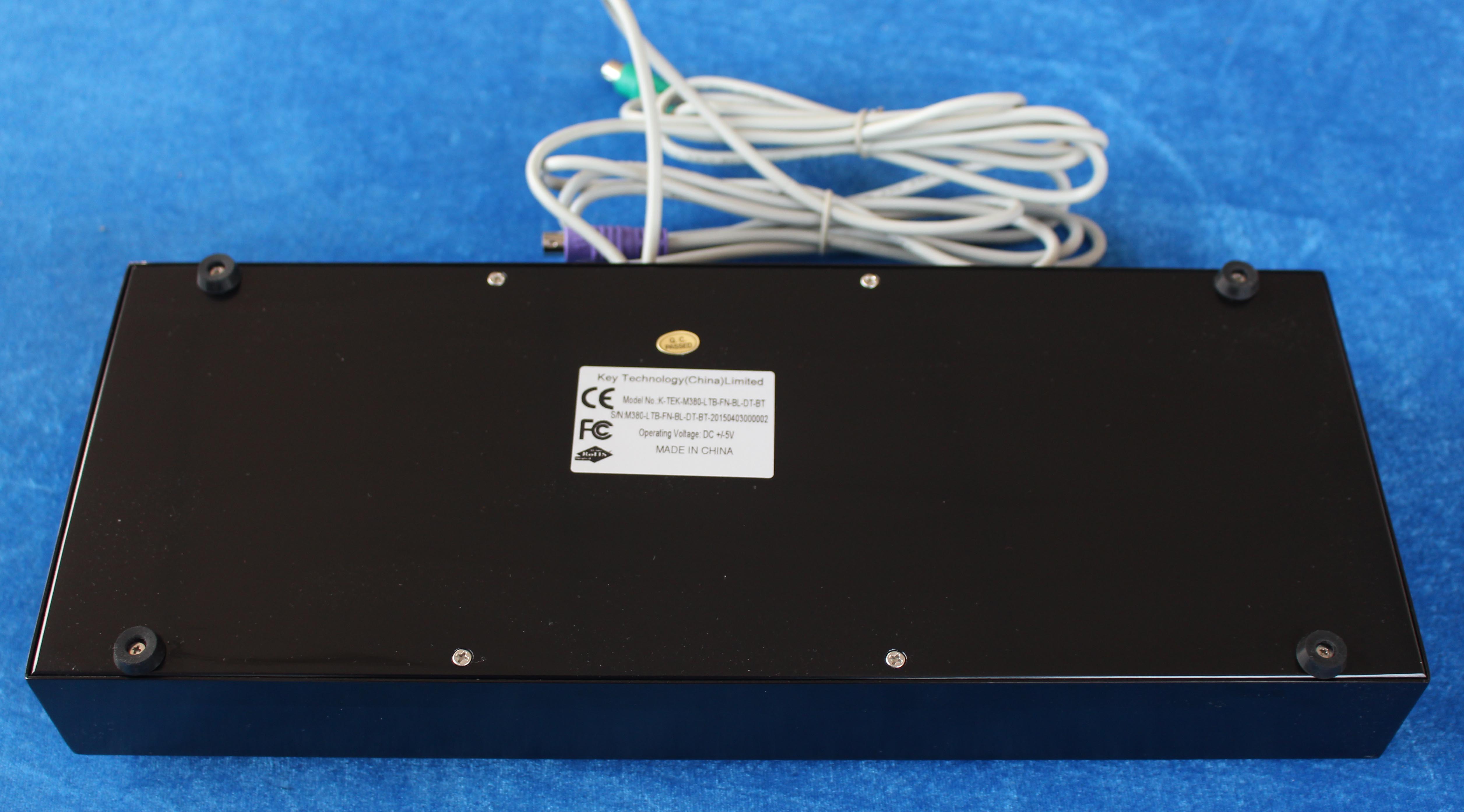

    Product Pictures:

    Mechanical Drawing:

    Applications:

    MECHANICAL DATA
    Key: 85 keys
    Key top style: Protuberant rectangular keys.
    Actuator/keys materials: polymer
    SS housing: full SUS304 stainless steel housing.
    Robust polycarbonate frame: between top SS plate and back SS plate for fixing and mounting keys & gold PCB electronics controller, with mounting holes along the keyboard mounting edge for fixing inside parts with SS housing.
    Key Size: 11.4mm x 11.4mm for normal keys, 11.4mm x 24.3mm for enter key, 11.4mm x 71.8mm for space bar.
    Key travel: 1.50mm
    Tracker ball: 38mm (1.5') diameter:
    IP68 laser washable trackball

    Switch life: more than 10 million of operations.
    Lettering: laser-etched or high quality ink print.
    G.W.: 2.50KGs
    Dimensions: 393.0mm x 154.4mm x 36.0mm (L x W x H)


    ELECTRICAL DATA
    Supply Voltage: +5V DC +/-5%
    Current Rating:
    40mA for keyboard and trackball without backlight.
    240mA for keyboard and trackball with backlight on.
    EMC Standard: It is compliance with the council IEC 61000-4-2:2008;IEC 61000-4-3:2006+AI:2007+A2:2010;

    IEC 61000-4-4:2004

    EMI: EN 55022: 2010

    EMS: EN 55024:2010
    Lifespan>5 years
    Switch Contact Material: Carbon-on-Gold key switch technology PCB.
    Interface: PS2, USB available.
    OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

    ENVIRONMENTAL ADAPTABILITY
    Operating temperature:-20℃ to +60℃
    Storage temperature: -30℃ to +70℃
    Operating RH: 100%
    Atmospheric pressure: 60-106Kpa.
    Saline mist: 96 hours, IEC 60512-6
    Damp heat test at + 40℃: 21 days, IEC 60512-6
    Dry heat test at + 85℃: 10 days, IEC 60512-6

    RELIABILITY
    RoHS, CE and FCC, ESD
    Protection Level: IP65 (front panel)
    Vandal resistant IK10
    Key Lifespan >10 million actuations
    MTBF >50000H
    MTTR <30min
