    Black IP67 Dynamic Usb Mechanical Keyboard 76 Keys With 38mm Trackball Mouse

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-M380-OTB-BL-BT-IL-DWP
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    Black IP67 Dynamic Usb Mechanical Keyboard 76 Keys With 38mm Trackball Mouse

    Black IP67 Dynamic Industrial Military Backlit Keyboard With 38mm Trackball Mouse


    MODEL NO.: K-TEK-M380-OTB-BL-BT-IL-DWP


    DESCRIPTION:

    76 keys IP67 dynamic vandal proof industrial and military keyboard with individual durable and robust polymer keys with adjustable industrial backlight included, and IP68 dynamic washable 38mm robust resin or stainless steel optical trackball module with +800DPI high resolutions for fast and accurate cursor position, with industrial PCB with carbon-on-gold key switch technology with key stroke 1.50mm with extremely good tactile feeling for fast and accurate input without any noise, FN + Clean combination key lock/disable the keyboard for easy cleaning and washing without needing to take out the keyboard from PC, high quality durable black titanium electroplated on the top stainless steel plate included, adjustable industrial backlight included, rear panel mounted.


    Dimensions: 369.0mm x 108.0mm (front panel)


    APPLICATION
    This keyboards is constructed to survive in exposed, unsupervised, public environments, and military as Army, Navy, Air force.
    Their responsive key action ensures rapid, reliable and responsive data entry in tough, wet or hostile conditions. A hardened stainless steel front plate and polymer keys ensure the keyboard’s resistance to hard use, abuse and vandalism. A water and impact resistant trackball makes this keyboard the complete and ideal solution for PC data entry in menu based ‘point & click’ application.

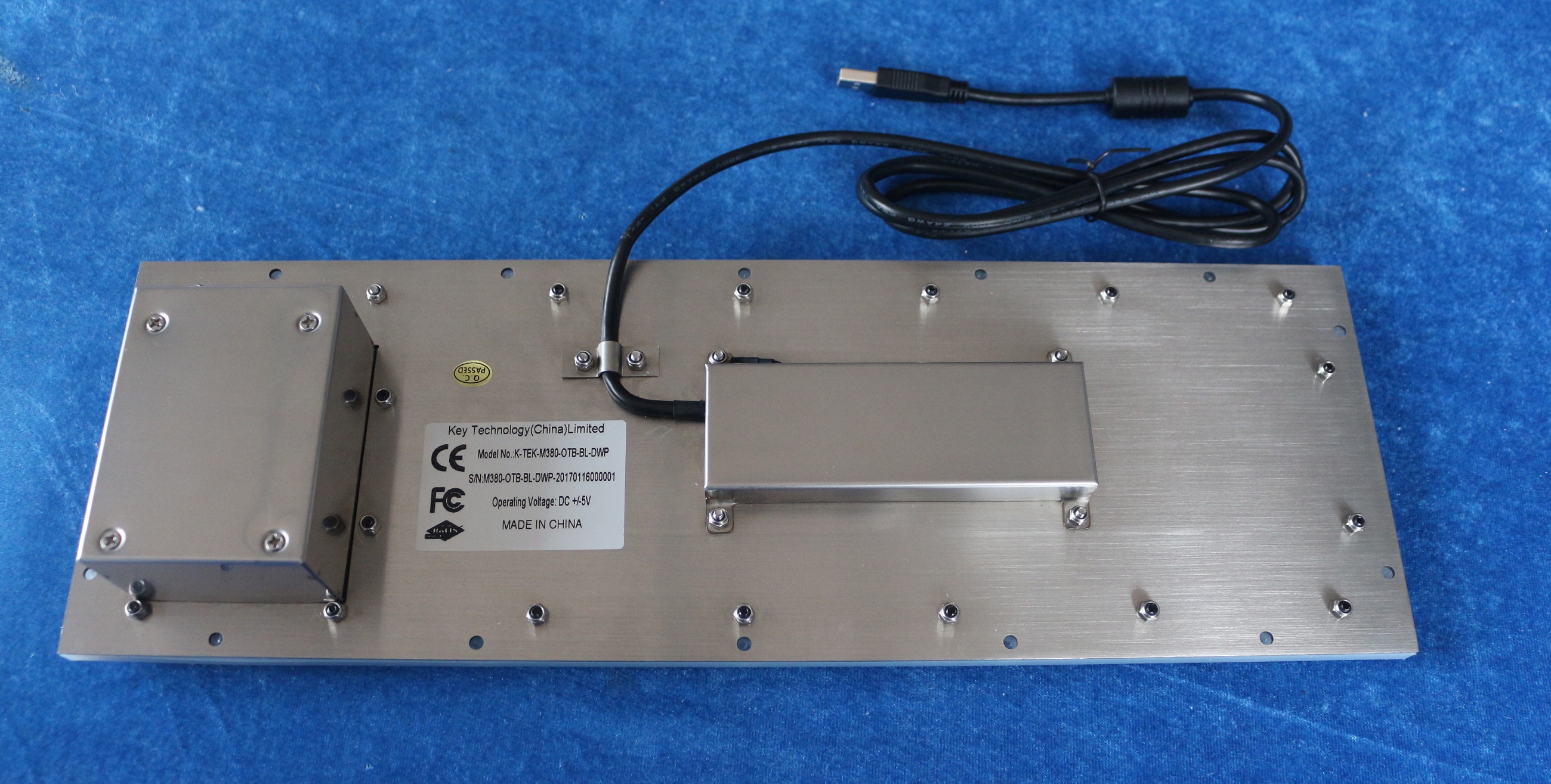

    Actual Photos:


    MECHANICAL DATA


    Key76 keys
    Key top styleProtuberant rectangular keys
    Actuator/keys materialspolymer
    Top SS plate1.5mm stainless steel plate with super quality durable Black Titanium Electroplated (optional)
    Back SS plate1.5mm stainless steel plate
    Robust polycarbonate frameBetween top SS plate and back SS plate for fixing and mounting keys & gold PCB electronics controller, with mounting holes along the keyboard mounting edge for fixing keyboard with rear panel mounting.
    Key Size11.4mm x 11.4mm for normal keys, 11.4mm x 24.3mm for enter key, 11.4mm x 71.8mm for space bar.
    Key travel1.50mm
    Tracker ball38mm (1.5') diameter, IP68 optical trackball
    Switch lifemore than 10 million of operations
    Letteringlaser-etched or high quality ink print
    G.W.2.00KGs

    ELECTRICAL DATA


    • Supply Voltage: +5V DC +/-5%
    • Current Rating:40mA for keyboard and trackball without backlight.
    • 240mA for keyboard and trackball with backlight on.
    • EMC Standard: It is compliance with the council IEC 61000-4-2:2008;IEC 61000-4-3:2006+AI:2007+A2:2010;IEC 61000-4-4:2004
    • EMI: EN 55022: 2010
    • EMS: EN 55024:2010
    • Lifespan>5 years
    • Switch Contact Material: Carbon-on-Gold key switch technology PCB.
    • Interface: PS2, USB available.
    • OS: All windows, Linux, Unix, Mac OSX

    ENVIRONMENTAL ADAPTABILITY


    Operating temperature:-20oC to +60oC
    Storage temperature: -30oC to +70oC
    Operating RH: 100%
    Atmospheric pressure: 60-106Kpa.
    Saline mist: 96 hours, IEC 60512-6
    Damp heat test at + 40oC: 21 days, IEC 60512-6
    Dry heat test at + 85oC: 10 days, IEC 60512-6


    RELIABILITY


    RoHS, CE and FCC, ESD
    Protection Level: IP67 (front panel)
    Vandal resistant IK10
    Key Lifespan >10 million actuations
    MTBF >50000H
    MTTR <30min
