    Waterproof Keyboard with Mouse Touchpad Stainless Steel for Kiosk

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-A343TP-DWP
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    Waterproof Keyboard with Mouse Touchpad Stainless Steel for Kiosk

    Waterproof Panel Mount Metal Koisk Keyboard With Touchpad Stainless Steel Keyboards


    MODEL NO.: K-TEK-A343TP-DWP


    DESCRIPTION:

    70 keys compact format IP67 static vandal proof stainless steel industrial keyboard with IP67 dynamic sealed & ruggedized tough touchpad with scroll function (optional) for fast and accurate cursor position, one complete silicone rubber along mounting aluminum plate for easy mounting & sealing tightly with cabinet,industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise, rear panel mounting solution. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc.

    DIMENSIONS: 343.0mm x 105.0mm (front panel)


    Specifications:
    Model NO:K-TEK-A343TP-DWP
    Number of Keys :70 keys
    Switch Contact Material:Carbon-on-Gold key switch technology PCB.
    DIMENSIONS:343.0mm x 105.0mm (front panel) , 367.0mm x 129.0mm (back panel)
    Material:Stainless Steel
    Interface:USB ; PS/2; Y cable
    Layout :Customized
    Protection Level:IP67
    Certificates:RoHS Compliant, CE and FCC, ESD
    Working voltage:+5V DC +/-5%
    Working current:appr. 50mA
    Operating temperature:-20℃ to +60℃
    Storage temperature:-30℃ to +70℃
    Key travel:1.5mm
    Key life:5 millions actuations
    Actuation Force:1.2 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ),
    2.0 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
    Key Size:11.4mm x 11.4mm for normal keys, 11.4mm x 24.3mm for enter key, 11.4mm x 71.8mm for space bar.
    Cable length:2m
    Weight:1.40KGs
    Compatible system:All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

    Mechanical Drawing:

    APPLICATION : This Keyboard is mainly targeted for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc


    ENVIRONMENTAL ADAPTABILITY :

    Operating temperature:-20oC to +60oC
    Storage temperature:-30oC to +70oC
    Operating RH:30-90%
    Atmospheric pressure:60-106Kpa
    Saline mist:96 hours, IEC 60512-6
    Damp heat test at + 40oC:21 days, IEC 60512-6
    Dry heat test at + 85oC:10 days, IEC 60512-6

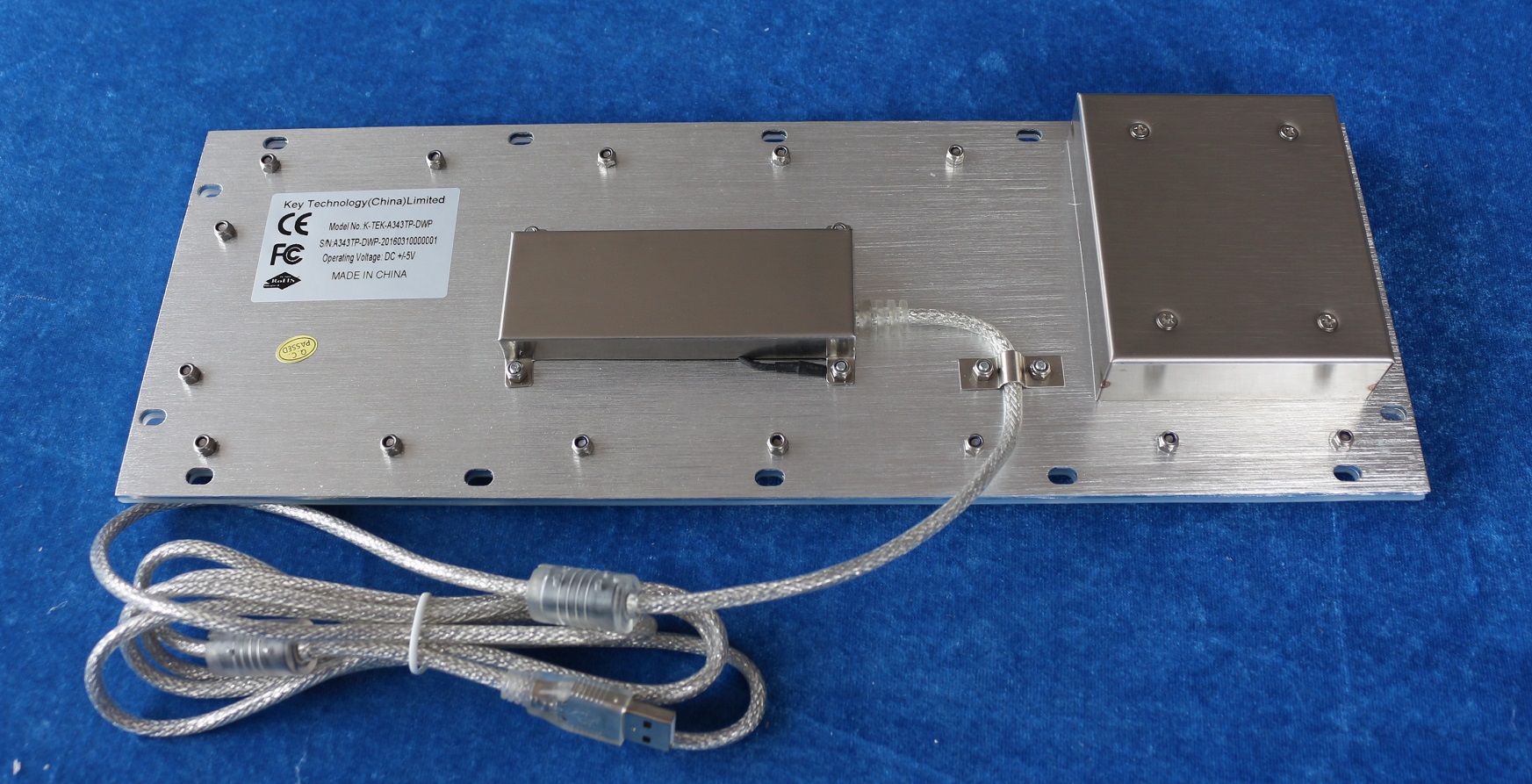

    Product Pictures:

    Waterproof Keyboard with Mouse Touchpad Stainless Steel for Kiosk

    Waterproof Keyboard with Mouse Touchpad Stainless Steel for Kiosk

    Waterproof Keyboard with Mouse Touchpad Stainless Steel for Kiosk

    Waterproof Keyboard with Mouse Touchpad Stainless Steel for Kiosk
