104 keys IP68 desktop keyboard with touchpad, with FN keys and numeric keys

DESCRIPTION:

104 keys compact format IP68 dynamic sealed and ruggedized vandal proof stainless steel industrial keyboard with IP65 dynamic sealed & ruggedized tough touchpad with scroll function (optional) for fast and accurate cursor position, functional keys F1, F2, F3…F10, F11, F12 are on the top line for easy operation, numeric keypad ,industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, movable stand alone DESK TOP VERSION,or mountable desktop with mounting holes on the bottoms for fixing.

With adjustable industrial backlight included, (Blue, Red, White colors etc.optional).

Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.

APPLICATION

This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.

MECHANICAL DATA

· Actuator/keys: 104 keys, super quality SUS304 brushed stainless steel

· Key top style: Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available

· Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100.0mm for space bar.

· Key travel: 0.45mm short stroke.

· Actuation Force: 3.2N+/-0.1N for key 14.0mm x 14.0mm (pressure point) 4N+/-0.1N for key 14.0mm x 28.0mm (pressure point)

· Switch life: more than 1 million of operations

· Stainless Steel Housing: super quality brushed stainless steel.

· Touchpad: sealed and ruggedized tough touchpad.

· Touchpad cover: Composite
More than Lifetime 10 million strokes
Mutual Capacitance sensing
X/Y position sensing resolution: 40 counts/mm
X/Y position reporting: Relative
Output (self-detectable depending on cable): PS2 or USB
Tracking speed: Maximum 1,016 m/sec
Power supply voltage: 5 VDC ± 0.25V
Current rating (active mode): 17 mA

· G.W.: 3.00KGs

· Dimensions:430.0mm x 155.0mm x 20.0mm (L x W x H)

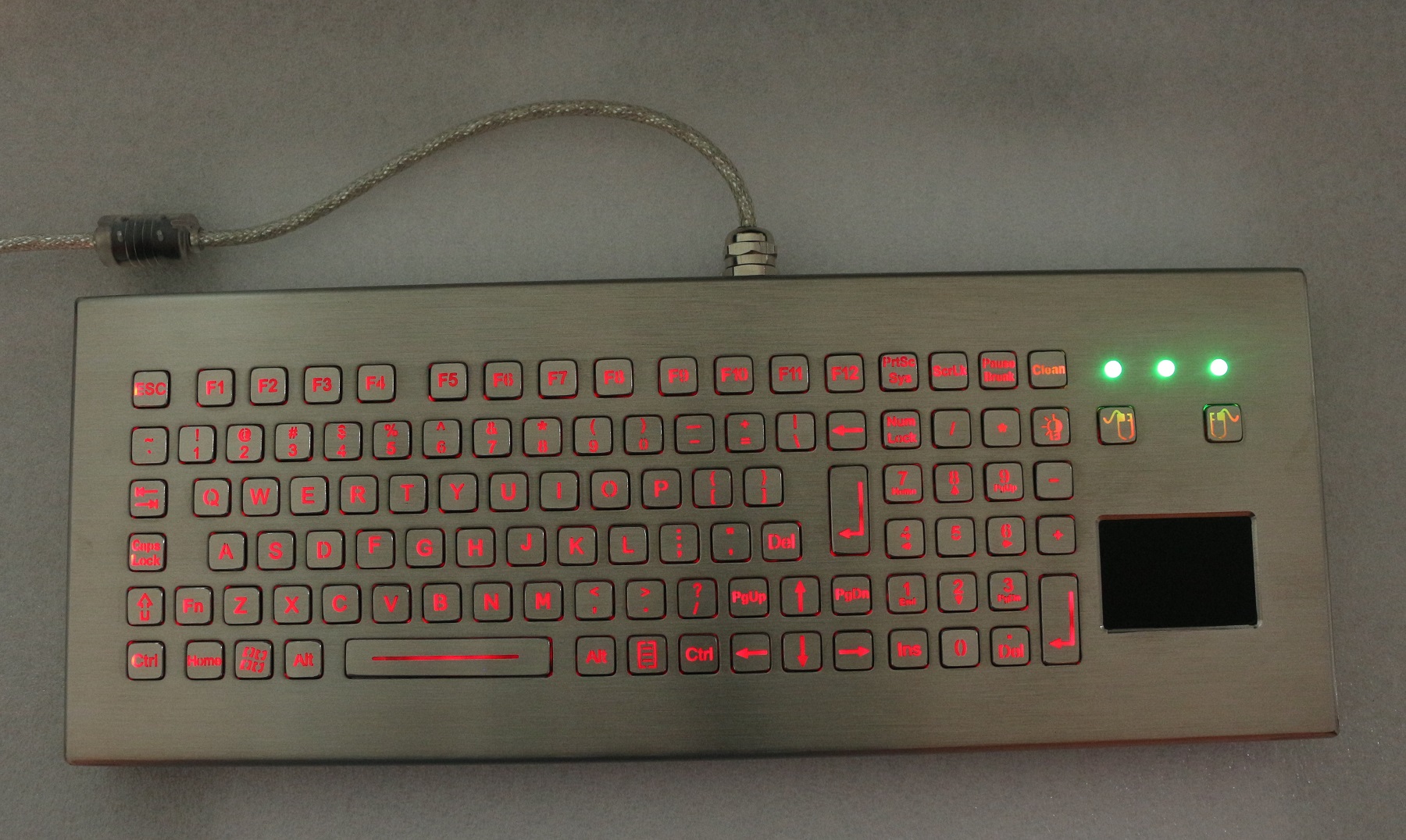

Actual Photos:

ELECTRICAL DATA

· Supply Voltage: +5V DC +/-5%

· Current Rating: appr. 300mA

· EMC Standard: EN 55032:2015, EN 55035:2017

· Lifespan > 5 years

· Switch Contact Material: Carbon-on-Gold key switch technology PCB.

· Interface: PS2, USB available.

· OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

ENVIRONMENTAL ADAPTABILITY

· Operating temperature: -20oC to +60oC

· Storage temperature: -30oC to +70oC

· Operating RH: 30-90%

· Atmospheric pressure: 60-106Kpa.

· Saline mist: 96 hours, IEC 60512-6

· Damp heat test at + 40oC: 21 days, IEC 60512-6

· Dry heat test at + 85oC: 10 days, IEC 60512-6

RELIABILITY

· RoHS Compliant, CE and FCC, ESD

· Protection Level: IP68(front panel)

· Vandal resistant IK09

· Key Lifespan >1 million actuations

· MTBF >20000H

· MTTR <30min
