12 Keys IP67 waterproof stainless steel Industrial Keypad with backlight

MODEL NO.: K-TEK-A88KP-BL-DT-DWP

DESCRIPTION: 12 Keys Vandal proof IP67 dynamic waterproof stainless steel compact format numeric keypad with fully sealed
industrial PCB with industrial electronics controller shielded & protected by desk top stainless steel housing, with industrial PCB
carbon-on-gold key switch technology with long stroke 2.0mm, movable and stand alone desk top version, stainless steel keys
etched out via professional way and filled with transparent epoxy for backlight out. Industrial Backlight (red/blue/white/green)
included. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic
water,oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.

DIMENSIONS: 100.0mm × 120.0mm × 30.0mm(L x W x H)

APPLICATION:
This Keypad is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet
terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public
areas, ticket vending machines, gas stations, cash machines (ATM/CDM), Internet public phones etc.

MAIN FEATURE:
-Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design,
functionality, longevity and high protection level.
- Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially
under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
-Waterproof/dirt-proof execution according to degree of protection IP68.
-An excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without
any noise. With firm tactile perception for comfortable operation.

-key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
-Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key
covers.
- Ease of customizing with multiple languages, to accommodate foreign or custom variants.

ELECTRICAL DATA:

COMMUNICATION PARAMETER:

PS2/USB:
-Standard PS2/USB keyboard interface.
-12 actuators: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9,*, #. 3 x 4 scanning code
- Any customized layout/codes are available upon customers’ requirements

RS232:
- Standard RS232 serial interface.
-Communication velocity: 9600bps.

- Data format: N, 8, 1.
- 12 actuators: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9,*, #. 3 x 4 scanning code, 3 x 4 scanning code.
-Any customized layout/codes are available upon customers’ requirements

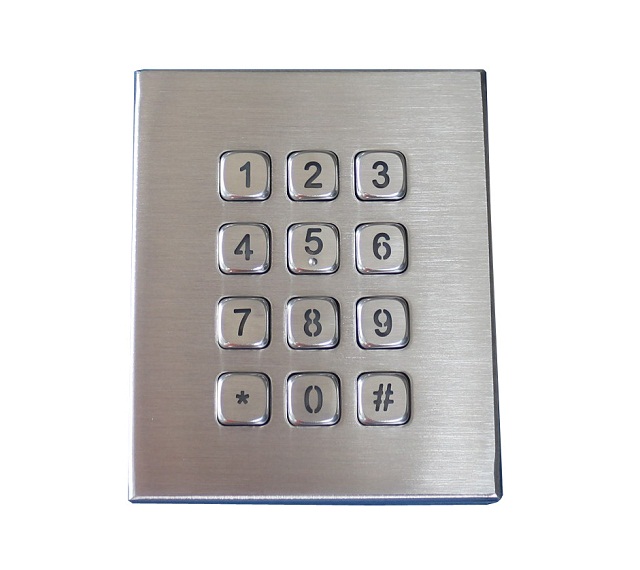

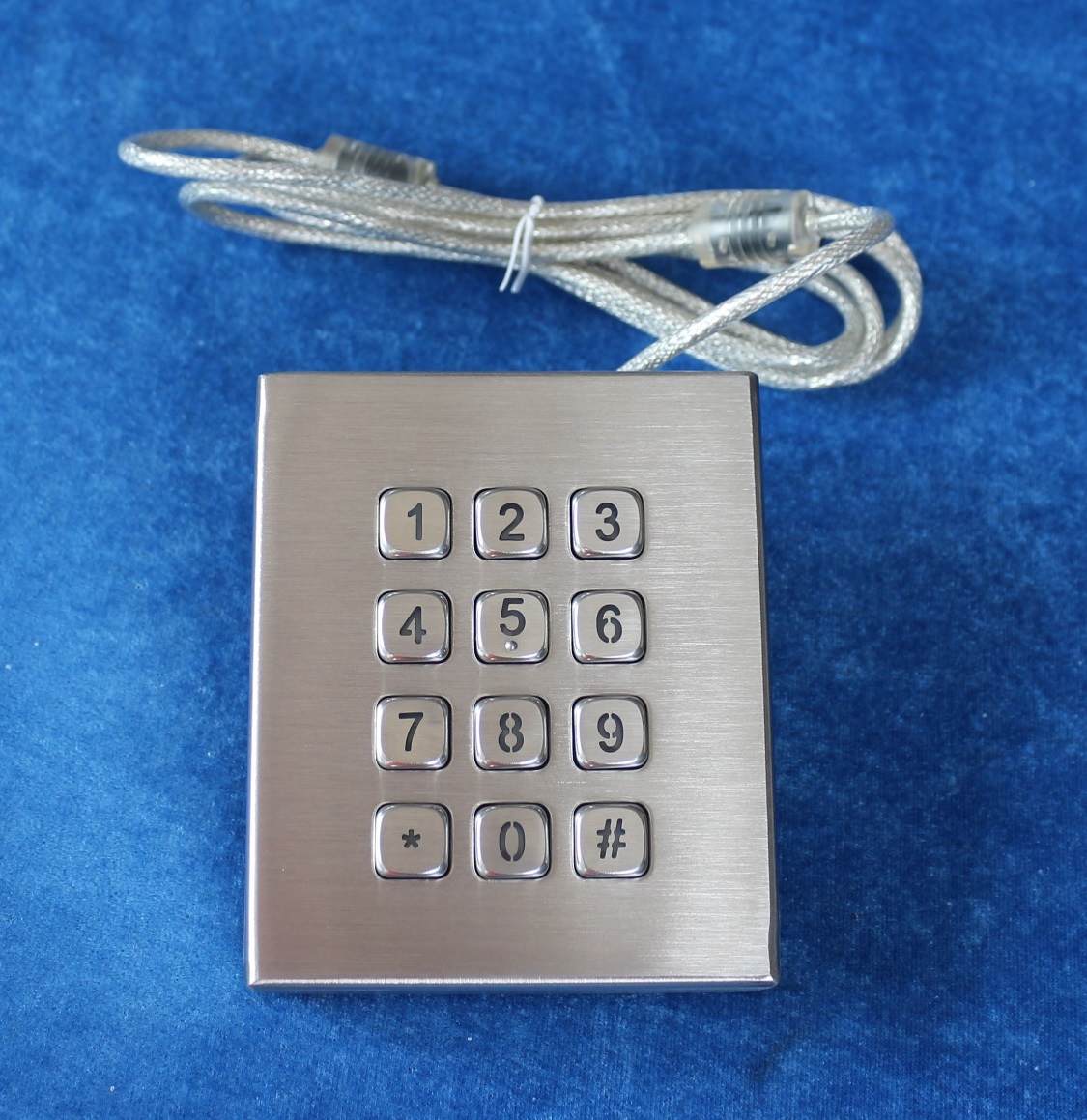

Actual photos:

Mechanical Drawing:

Our Company:

About Us:

Key Technology was established in 2006, which is a company specializing in providing vandal proof waterproof IP65/IP66/IP67/IP68 industrial/medical/marine/vehicle/rugged computer keyboard/keypad/trackball/touchpad Etc.

Key Technology China Limited’s customers include Finance, Aerospace, Chemicals/Petro, Food & Beverage, Healthcare, Telecom/Media, High Technology, Transportation-Automotive, Manufacturing, Utilities & Resources, Pulp and Paper - Government/Defense, Universities and Academia, Museums/Public Displays and Miscellaneous industries.

Active, positive, and team spirit is a special attribute of the people in Key Technology China Limited. The principle of business is based on Righteousness, Integrity, Diligence and Thrift, which stands as our guideline of conduct in the future. By doing so, Key Technology China Limited is moving towards a global technology firm with an optimistic and long future.

Durable Design:
-Ideal for applications in the harshest conditions.

-Our products meet NEMA 4, 4X and IP 65 and IP68 specifications, making them vandal proof, resistant to dust, dirt, water and corrosive liquids.

--Designs that exceed requirements for ISO certification to ensure quality control among manufacturing standards.

-Indestructible Industrial Keyboards and Pointing Devices are long lasting and stand up in harsh environments where your typical office grade peripherals will not survive.

-An ability to withstand extreme temperatures that permits function in freezers, heat-sensitive areas, and other severe environments.

-All the input devices are plug-and-play compatible with Windows operating systems, MAC OS9/OSX and require no special drivers.

--Any language layouts are available to accommodate international customers.
-Customizable function keys that provide flexibility for specialized applications.

-Low-profile keys that allow for efficient cleaning, reduced disinfection time and protection against cross contamination.
-Backlit keys that allow employees to optimize performance while working in low-light environments.
-Polycarbonate and stainless steel cases available to meet custom preferences.
-Small footprint designs that increase mobility.

-Standard mounting patterns that fit most keyboard mounts for easy integration into existing systems.
-More specialized features that cater to our kiosk/ATM, medical, military, emergency response, industrial and material-handling end users.
