    IP67 Omron Switch Industrial Membrane Keyboard 38.0mm Trackball

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-D333-OTB-FN-SW
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

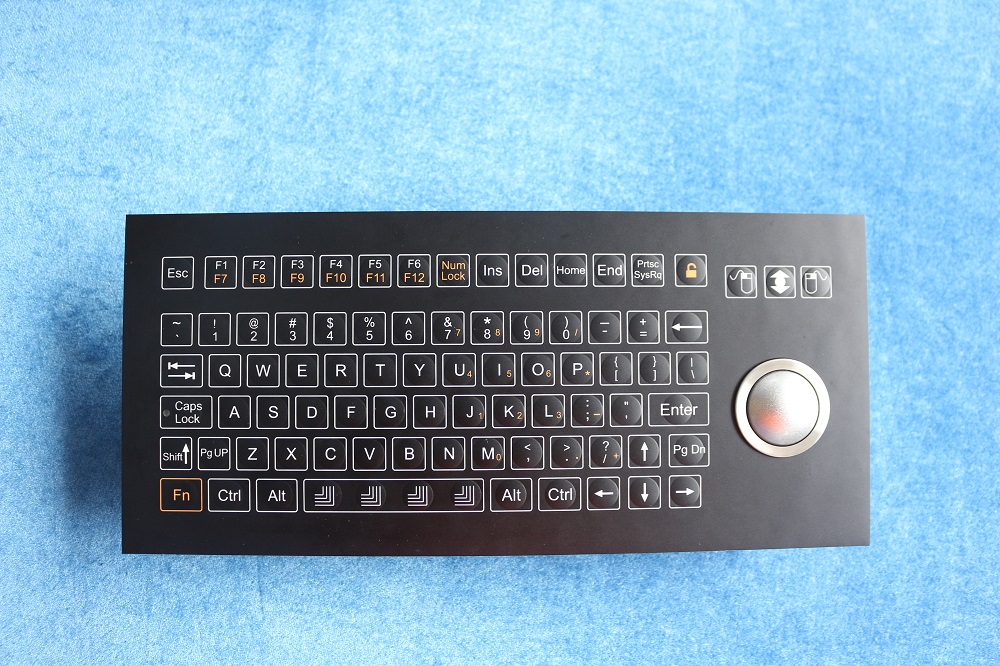

    IP67 Omron Switch Industrial Membrane Keyboard 38.0mm Trackball

    Promotion IP67 Industrial Membrane Keyboard With Omron Switch Optical Trackball


    MODEL NO.: K-TEK-D333-OTB-FN-SW


    Description:


    -84 keys compact format IP67 dynamic rated industrial membrane keyboard
    -With function keys on the upper line
    -Integrated IP68 dynamic rated washable 38.0mm optical trackball module with 800 DPI resolutions for fast and accurate cursor position.
    -2.0mm thickness industrial PCB OMRON switch technology
    -With short stroke 0.45mm(good tactile feeling) for reliable data input
    -With LOCK key for easy cleaning via lock/disable the entire keyboard without taking away the keyboard from PC
    -Surface mounted extremely flush with anti-microbial, durable and scratch-proof polyester.
    -It withstand to most chemicals and liquids under the harshest environments.
    -The durable fonts printed on the film underneath nnever fade,
    -Ruggedized and backed with 3.0mm alumium plate with sand blasting & oxygenation treatment,
    -With top panel mounted solution.
    MECHANICAL DATA:
    Number of Keys:84
    Key switch Technology:OMRON switch technology with short stroke 0.45 mm for stable and accurate data input.
    Actuation Force:1.4 N+/-0.1 N for key 11.0 mm x 11.0 mm (press point)
    Key Travel:0.45 mm
    Key switch Lifetime:1 mil. operations
    Protection Level:IP67
    Mounting Type:Top panel mounting
    Operating Temperature:-20 °C to +60 °C
    Colors:2 (white, black)
    G.W.:1.50 KG
    Key Dimensions (print area):11.0 mm x 11.0 mm

    TRACKBALL:
    38mm stainless steel ball or hardened resin ball.
    Resolution: 800DPI
    Lifetime: more than 10 million cycle
    Power supply voltage: 5 V DC ±0.25V
    Current rating (active mode): 800mA

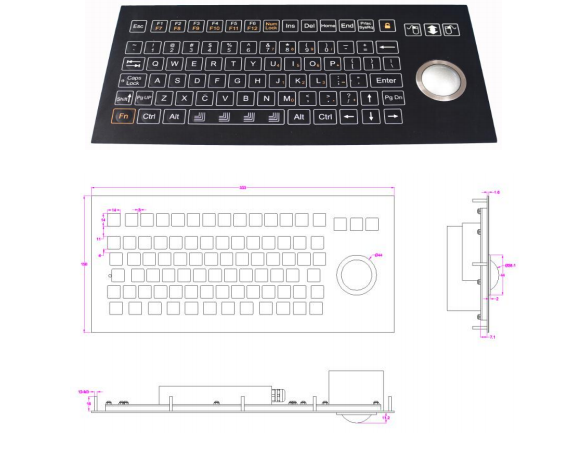

    Dimensions: 333.0mm x 150.0mm (top panel)
    ELECTRICAL DATA:
    Supply Voltage: +5V DC +/- 5%
    Current Rating: appr. 100mA
    EMC Standard:EN 55032:2015; EN 55035:2017
    Lifespan> 5 years
    Interface: PS2, USB available.
    OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
    RELIABILITY
    RoHS, CE and FCC
    Protection Level: IP67
    Key Lifespan >1 million actuations
    Trackball lifespan > 10 million of times
    MTBF >20000H
    MTTR <30min
    IP67 Omron Switch Industrial Membrane Keyboard 38.0mm TrackballIP67 Omron Switch Industrial Membrane Keyboard 38.0mm Trackball
