    Anti Vandal IP67 Dynamic Stainless Steel Optical Trackball PS2

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-B88-25-OTB-DWP
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    Anti Vandal IP67 Dynamic Stainless Steel Optical Trackball PS2

    IP67 dynamic grade anti-vandal stainless steel optical trackball


    MODEL NO.:K-TEK-B88-25-OTB-DWP


    DESCRIPTION:

    IP67 dynamic rated vandal proof stainless steel optical trackball with IP65 dynamic sealed & ruggedized stainless mouse buttons and IP68 dynamic rated washable 25.0mm stainless steel optical trackball module with +800 DPI resolutions for fast and accurate fixing cursor position with extreme smooth operation without any noise,optical trackball module protected and shielded by stainless steel housing, 3 sealed stainless steel mouse buttons designed for right & left clicking and scrolling up and down with ball rolling,with rear panel mounting solution.one complete silicone rubber alone the rear stainless steel plate for easy mounting & sealing tightly with cabinet. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water,oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.

    DIMENSIONS: 88.0mm x 88.0mm (top panel)


    TECHNICAL SPECIFICATION

    ITEMSPECIFICATION
    MechanicalKey3 keys, quality brushed stainless steel
    Key top styleNon-protuberant rectangular Keys
    Front PlateQuality brushed stainless steel
    Key Travel0.45mm
    Ball diameter25.4mm/1.0’' (19mm, 25mm, 36mm 40mm also available)
    Key switch lifespanmore than 1 Mio actuations
    Track ball lifespan> 5 years
    Back Metal CoverRear side integrated electronics protected by a metal cover
    Actuation Force3.2N+/-0.1N
    Mounting RackStainless steel
    Dimension

    Dimensions with 25mm track ball,

    Front plate (W x H): 88.0mm x 88.0mm

    InterfacePS2, USB are available, Y type cable with ports of PS2 and USB
    ElectricalPower supply+5V DC +/-5%
    Protection levelIP67 (dynamic), IK09
    EMC StandardEN 55032:2015, EN 55035:2017
    Power consuming≤1.00W(dynamic)
    ≤0.2W(static)
    Contact MaterialGold-on-Gold
    EnvironmentalOperating temperature-20ºC~+ 60º C
    Storage temperature- 30ºC~+ 70ºC
    Operating RH30~90%
    Atmospheric pressure60~106Kpa.
    ReliableCertificatesRoHS compliant, CE and FCC certified. ESD
    MTBF>20000h
    MTTR< 30min
    OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
    Packing DetailsEach unit to a suitable brown box, suitable brown boxes to a standard export carton.

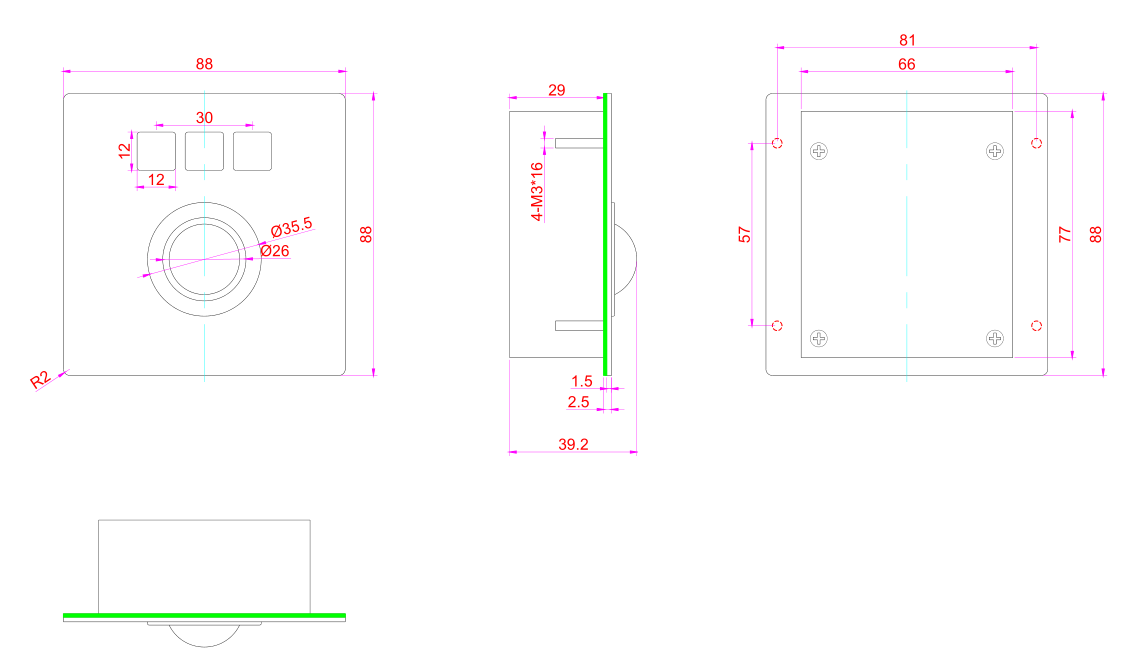

    Mechanical Drawing:

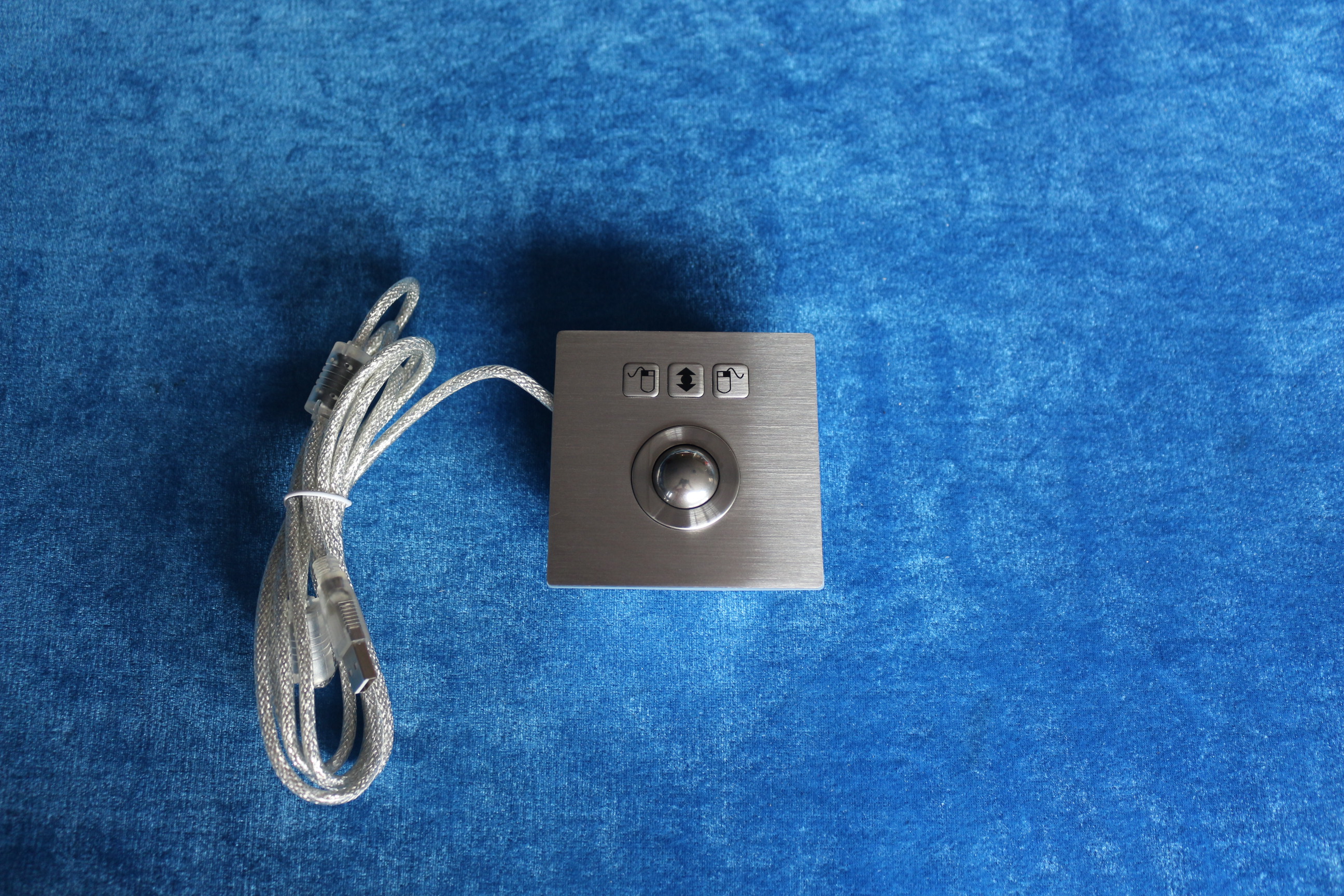

    Similiar Applications Pictures:
