    IP68 USB RS232 PS2 Metal industrial Keyboard With Touchpad

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-A361TP-FN-DT-DWP
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    IP68 USB RS232 PS2 Metal industrial Keyboard With Touchpad


    IP68 USB Metalindustrial keyboard with touchpadfor Coal Mine

    Main Features:
    1. 85 keys IP68 dynamic waterproof and vandal proof stainless steel industrial keyboard.
    2. IP65 dynamic sealed & ruggedized tough touchpad.
    3. Functional keys F1, F2, F3…F10, F11, F12 are on the top line for easy operation,

    4. Long stroke 2.0mm with excellent tactile feeling for fast and accurate data input.
    5. Movable stand alone DESK TOP VERSION, or mountable desktop with mounting holes on the bottoms for fixing.

    6. FN + Clean combination keys for easy cleaning without taking the keyboard away from PC.
    7. PS/2, USB connection plug and play with PC via PC existing OS driver, no need separate driver.
    8.Customizing with multiple languages to accommodate custom variants.

    MECHANICAL DATA:

    Key

    85 keys, super quality SUS304 brushed stainless steel

    Key top style

    Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available

    Key Size

    14.0mm x 14.0mm for normal keys,
    14.0mm x 28.0mm for enter key,
    14.0mm x 70mm for space bar.

    Key travel

    2.0mm long stroke

    Switch life

    more than 5 million of operations

    Actuation Force

    0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point)
    1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)

    Stainless Steel Housing

    Super quality brushed stainless steel.

    Operating temperature

    -20oC to +60oC

    Storage temperature:
    -30 to +70
    Dimensions
    361.0mm x 145.0mm x 20.0mm (L x W x H)
    G.W.:
    3.00KGs

    ELECTRICAL DATA:
    Supply Voltage:
    +5V DC +/-5%
    Current Rating:
    appr. 50mA
    Lifespan
    > 5 years
    Switch Contact Material:
    Carbon-on-Gold key switch technology PCB.
    Interface:
    PS2, USB available.
    OS:
    All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

    ENVIRONMENTAL ADAPTABILITY :
    Operating RH: 30-90%
    Atmospheric pressure: 60-106Kpa.
    Saline mist: 96 hours, IEC 60512-6
    Damp heat test at + 40oC: 21 days, IEC 60512-6
    Dry heat test at + 85oC: 10 days, IEC 60512-6
    RELIABILITY :
    RoHS Compliant, CE and FCC, ESD
    Protection Level: IP68(front panel)
    Vandal resistant IK08
    MTBF >20000H
    MTTR <30min

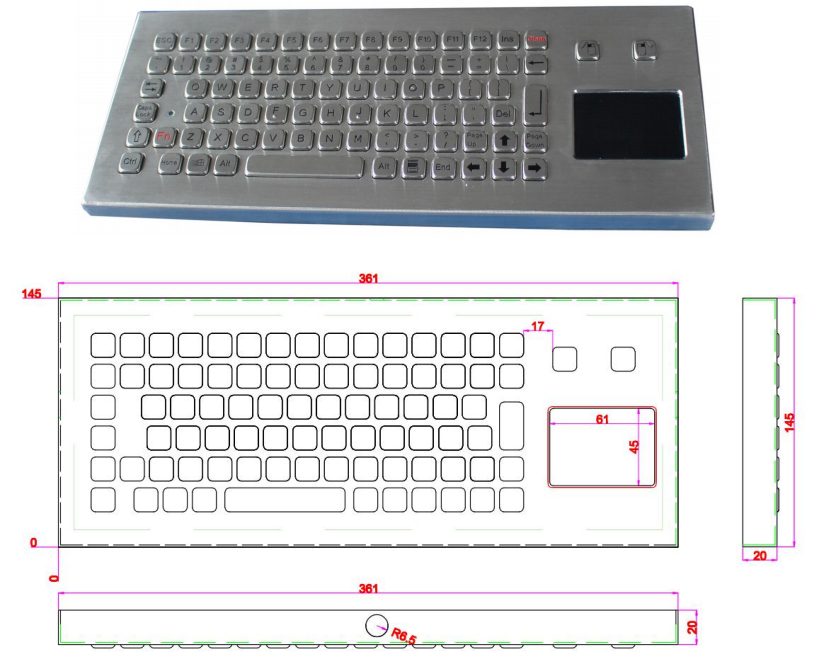

    Actual Photos:
    FAQ
    www.rugged-key.com
    www.key-tek.cn
    www.ruggedized-keyboard.com

    Q: Are you trading company or manufacturer ?

    A: We are a professional manufacturer for industry/military/medical/vehicle keyboards.

    Q: How long is your delivery time?

    A: Generally it is 1-2 Weeks after payment is received. If larger quantity, delivery time would be 3-5 weeks.

    Q: Do you provide samples ?

    A: Yes, we could offer the sample of one quantity first before large quantity orders.

    Q: What is your terms of payment ?

    A: 100% payment via Paypal T/T, Western Union or Alibaba Trade Assurance.
    If you have another question, pls feel free to contact us
    .
