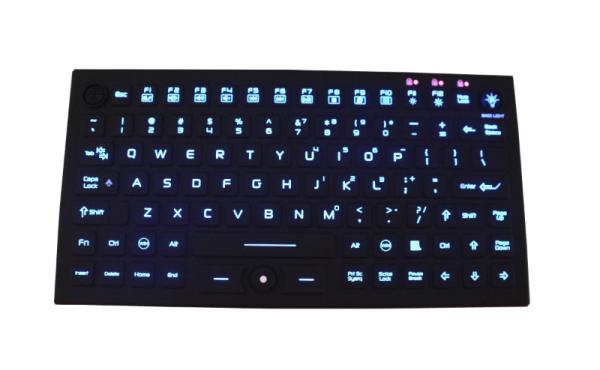

Industrial waterproof rugged medical grade keyboard with trackpoint with blacklit

Sepcial Features:

1.96 keys IP68 dynamic sealed & ruggedized industrial silicone rubber Hygienic contamination-proof keyboard with full keyboard functionalities with FN (F1, F2...F10) on upper line

2. sealed & ruggedized tough force sensing resistor for fast and accurate cursor position

3.with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment

4. this washable keyboard is an ideal solution to withstand to most chemicals and liquids under harsh environment,standard alone desk top version. Adjustable industrial backlight included(red, blue, white,green optional).

5.DIMENSIONS: 286.0mm x 148.0mm x 10.0mm (L x W x H)

MECHANICAL DATA:

APPLICATIONS:

This keyboard provides full-size versatility in a rugged, compact design .

This keyboard is ideal for use in environments ranging from manufacturing to material handling to medical settings.

MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipment, operation rooms, dialysis centers etc;
MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
MILITARY: Army, Navy, Air force
INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses
OTHER INDUSTRIES

MAIN FEATURE:
Keyboard provides full-size versatility in a rugged, compact design, rugged construction for reliable functionality
The keyboard lacks the crevices found between the keys of a regular keyboard, which is protected against dust, dirt, grease and corrosive liquids, which means it can withstand directed hose water, disinfectants, environmental contaminants and heavy industrial use.
With firm tactile key feel, key travel 1.50mm key travel.

Actuation Force: Square key: 1.2N+/-0.1N Rectangular key: 2N+/-0.1N
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
PS/2, USB connection cables that plug directly into computer like keyboard operations.
Enclosure: industrial silicone.
Low-profile keys for easy cleaning
Key life: 5 millions

MECHANICAL DATA
Key: 96 keys
Key top style: Protuberant rectangular keys with tactile feeling.
Output (self-detectable depending on cable): PS2 or USB
Key Size: 12.0mm x 13.0mm for normal keys, 23.4mm x 13.0mm for enter key, 68.0mm x 13.0mm for space bar key.
G.W.: 0.80KGs
Dimensions: 286.0mm x 148.0mm x 10.0mm (L x W x H)

ELECTRICAL DATA
Supply Voltage: +5V DC +/-5%
Current Rating: 50mA (non-backlight) , 300mA (with backlight on)

EMC Standard: EN 55032:2015 EN 55035:2017
Lifespan> 5 years
Switch Contact Material: Carbon-on-Gold key switch technology with gold PCB.
Interface: PS2, USB available.

Cable length: Standard 2.0m, customized length available.
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

ENVIRONMENTAL ADAPTABILITY
Operating temperature:-20℃ to +60℃
Storage temperature: :-30℃ to +70℃

Saline mist:96h, IEC60512-6

Damp heat test at +40℃: 21 days, IEC 60512-6

Dry heat test at +85℃: 10 days, IEC 60512-6
Operating RH: 100%
Shock: 3 x 11 ms pulses of 50g on each of 3 axes
Vibration: POWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz - 2kHz,

DURATION OF TEST PER AXIS: 3 hours

RELIABILITY
RoHS , CE, FCC
Protection Level: IP68
Key Lifespan >5 million actuations
MTBF >20000H
MTTR <30min

Our Company

Key Technology China Limited possess the professional experience and empirical knowledge to design, develop, manufacture, market and sell most complete line of vandal proof IP65 stainless steel keyboards, keypad, pointing devices, ATM PINPADs; Medical keyboards and Military keyboards etc.

We are the one-stop-shop for your requirements of products services in the areas of industrial input devices to extent to immense international market. Satisfied Key Technology China Limited’s customers include Finance, Aerospace, Chemicals/Petro, Food & Beverage, Healthcare, Telecom/Media, High Technology, Transportation-Automotive, Manufacturing, Utilities & Resources, Pulp and Paper - Government/Defense, Universities and Academia, Museums/Public Displays and Miscellaneous industries.

Active, positive, and works as a team is a special attribute of the people in Key Technology China Limited. The purpose of the operation of the company is to create value, which is the creation of customer value, creation of employee value, and the creation of shareholder value. The principle of business is based on Righteousness, Integrity, Diligence and Thrift, which stands as our guideline of conduct in the future. By doing so, Key Technology China Limited is moving towards a global technology firm with an optimistic and long future.

About Us:

Key Technology was established in 2006, which is a company specializing in providing vandal proof waterproof IP65/IP66/IP67/IP68 industrial/medical/marine/vehicle/rugged computer keyboard/keypad/trackball/touchpad Etc.

Key Technology China Limited’s customers include Finance, Aerospace, Chemicals/Petro, Food & Beverage, Healthcare, Telecom/Media, High Technology, Transportation-Automotive, Manufacturing, Utilities & Resources, Pulp and Paper - Government/Defense, Universities and Academia, Museums/Public Displays and Miscellaneous industries.

Active, positive, and team spirit is a special attribute of the people in Key Technology China Limited. The principle of business is based on Righteousness, Integrity, Diligence and Thrift, which stands as our guideline of conduct in the future. By doing so, Key Technology China Limited is moving towards a global technology firm with an optimistic and long future.

Durable Design:
-Ideal for applications in the harshest conditions.

-Our products meet NEMA 4, 4X and IP 65 and IP68 specifications, making them vandal proof, resistant to dust, dirt, water and corrosive liquids.

--Designs that exceed requirements for ISO certification to ensure quality control among manufacturing standards.

-Indestructible Industrial Keyboards and Pointing Devices are long lasting and stand up in harsh environments where your typical office grade peripherals will not survive.

-An ability to withstand extreme temperatures that permits function in freezers, heat-sensitive areas, and other severe environments.

-All the input devices are plug-and-play compatible with Windows operating systems, MAC OS9/OSX and require no special drivers.

--Any language layouts are available to accommodate international customers.
-Customizable function keys that provide flexibility for specialized applications.

-Low-profile keys that allow for efficient cleaning, reduced disinfection time and protection against cross contamination.
-Backlit keys that allow employees to optimize performance while working in low-light environments.
-Polycarbonate and stainless steel cases available to meet custom preferences.
-Small footprint designs that increase mobility.

-Standard mounting patterns that fit most keyboard mounts for easy integration into existing systems.
-More specialized features that cater to our kiosk/ATM, medical, military, emergency response, industrial and material-handling end users.
