Waterproof medical grade keyboard with Touchpad with USB
MODEL NO: K-TEK-M347TP-KP-FN-DT
DESCRIPTION:
116 keys IP68 dynamic sealed & ruggedized industrial silicone
rubber Hygienic contamination-proof keyboard
with full keyboard functionalities with FN (F1, F2...F11, F12) on
upper line, integrated numeric keypad, sealed &
ruggedized tough touchpad for fast and accurate cursor position,
gold-finnish PCB with carbon-on-gold key switch
technology with long stroke (1.50mm) with extremely good tactile
feeling for fast and accurate data input without
any noise, with durable coating & antimicrobial keyboard surface
withstand to most chemicals and liquids under
harsh environment, this washable keyboard is an ideal solution to
withstand to most chemicals and liquids under
harsh environment, standard alone desk top version.
MAIN FEATURE:
Keyboard provides full-size versatility in a rugged, compact
design, rugged construction for reliable functionality
The keyboard lacks the crevices found between the keys of a regular
keyboard, which is protected against dust,
dirt, grease and corrosive liquids, which means it can withstand
directed hose water, disinfectants, environmental
contaminants and heavy industrial use.
With firm tactile key feel, key travel 1.50mm key travel.
Actuation Force: Square key: 1.2N+/-0.1N Rectangular key: 2N+/-0.1N
Integrated touchpad.
Integrated numeric keypad.
Ease of customizing with multiple languages, to accommodate foreign
or custom variants.
PS/2, USB connection cables that plug directly into computer like
keyboard operations.
Enclosure: industrial silicone.
Low-profile keys for easy cleaning
Key life: 5 millions
MECHANICAL DATA
Key: 116 keys
Key top style: Protuberant rectangular keys with tactile feeling.
Touchpad cover: Composite
More than Lifetime 10 million strokes
Mutual Capacitance sensing
X/Y position sensing resolution: 40 counts/mm
X/Y position reporting: Relative
Output (self-detectable depending on cable): PS2 or USB
Tracking speed: Maximum 1,016 m/sec
Power supply voltage: 5V DC ± 0.25V
Current rating (active mode): 17mA
G.W.: 0.80KGs
Dimensions: 347.0mm x 136.0mm x 12.0mm (L x W x H)
TECHNICAL DATA:
| Tracking speed | Maximum 1,016 m/sec |
| Power supply voltage | 5 VDC ±0.25V |
| Current rating (active mode) | 17 mA |
| Switch life | more than 10 million of operations |
| Actuation Force | Square key: 1.2N+/-0.1N Rectangular key: 2N+/-0.1N |
| Cable Length | Standard 2.0m, customized length available. |
| G.W. | 0.8KGs |
Key | 116 keys |
| DImensions | 347.0mm x 136.0mm x 12.0mm (L x W x H) |
| Interface | PS2, USB available |

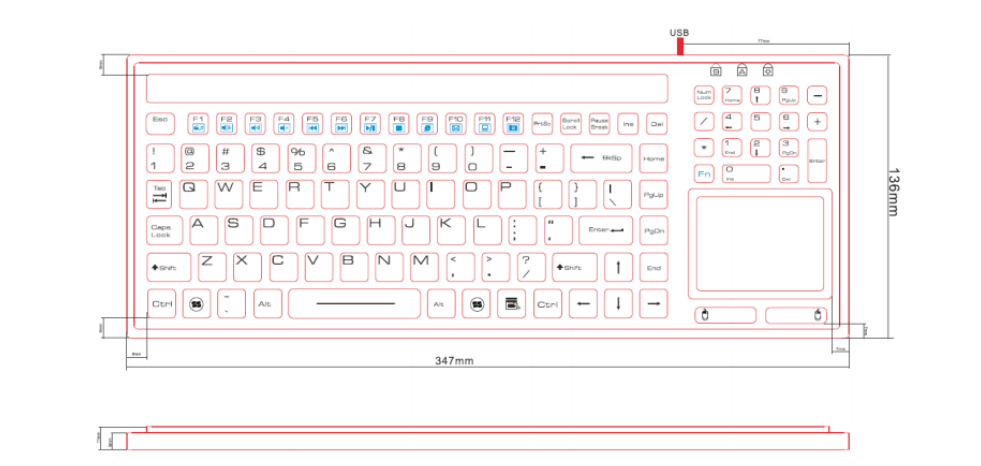

DIMENSIONS: 347.0mm x 136.0mm x 12.0mm (L x W x H)
ELECTRICAL DATA
Supply Voltage: +5V DC +/-5%
Current Rating: 50mA
EMC Standard: EN 55032:2015 EN 55035:2017
Lifespan> 5 years
Switch Contact Material: Carbon-on-Gold key switch technology with
gold PCB.
Interface: PS2, USB available.
Cable length: Standard 2.0m, customized length available.
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To
be confirmed).ENVIRONMENTAL ADAPTABILITY
Operating temperature:-20℃ to +60℃
Storage temperature: :-30℃ to +70℃
Saline mist:96h, IEC60512-6
Damp heat test at +40℃: 21 days, IEC 60512-6
Dry heat test at +85℃: 10 days, IEC 60512-6
Operating RH: 100%
PRINTED CIRCUIT BOARD: 94 V-0 SILICONE OVERLAY: 94 HB INTERFACE
CABLE: 94 HB
RELIABILITY
RoHS , CE, FCC
Protection Level: IP68
Key Lifespan >5 million actuations
MTBF >20000H
MTTR <30min
