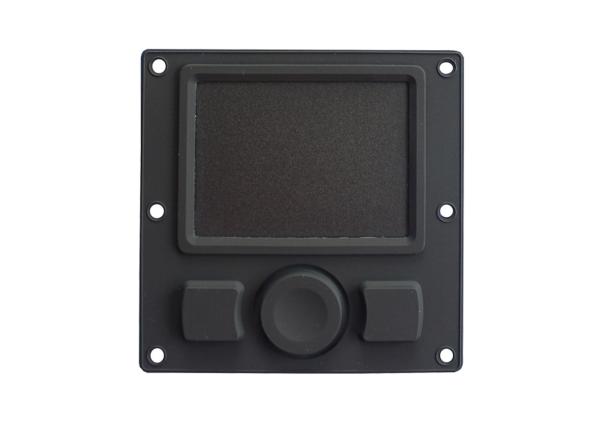

Military level ruggedied silicone rubber touchpad with force
sensing resistor
Model NO: K-TEK-M90TP-DHP-NV-151B
DESCRIPTION: IP67 dynamic sealed and ruggedized silicone rubber military
touchpad with a Force Sensing Resistor pointing device for fast and
accurate cursor position, with military level PCB with
carbon-on-gold key switch technology with 1.2mm key stroke for fast
and accurate data input , 3 mouse buttons for right & left clicking
and scrolling up and down, with mounting holes for rear panel
mounting. Military level, designed to meet MIL-STD-416G and
MIL-STD-810F with strong anti-interference and low radiation
ability
Dimensions: 90.0mm x 90.0mm
APPLICATIONS:
MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic
equipments, operation rooms, dialysis centers etc;
MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
MILITARY: Army, Navy, Air force
INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas,
food and beverage, clean or dirty manufacturing
environments, warehouses
OTHER INDUSTRIES
MAIN FEATURES:
IP67 dynamic Sealed and Ruggedized Touchpad for fast and accurate
cursor position
Special dura-coating for excellent mechanical and chemical
resistance
With firm tactile key feel, key travel 1.2mm.
Waterproof execution according to IP67 protection from top silicone
cover for waterproof/dirtproof/weatherproof and
easy cleaning, with mounting holes on the edge for easy tightly
mounting to enclosure or panel.
USB connection cables that plug directly into computer like normal
mouse operations.
MIL-STD-416G and MIL-STD-810F standard, with strong
anti-interference and low radiation ability, electromagnetic
compatibility and wide temperature.
| ITEM | SPECIFICATION |
| MECHANICAL DATA | Key | 2 keys +1 Hula point button |
| Key top style | Protuberant rectangular keys with tactile feeling |
| G.W. | 0.13KGs |
| Touchpad cover | Composite |
| Switch life | 38.0mm |
| Key switch lifespan | more than 5 million of operations. |
| X/Y Position Resolution | 1000 points/inch(40 points/mm)(graphics tablet mode) |
| Validated touch width | 43.0mm (max) |
| Validated touch length | 59.0mm (max) |
| Dimension | 90.0mm x 90.0mm (Front panel) |
| Interface | USB |
| Electrical | Power supply | +5V DC +/-5% |
| Protection level | IP67 |
| EMC Standard | EN 55032:2015, EN 55035:2017 |
| Power consuming | ≤1.00W(dynamic) |
| ≤0.2W(static) |
| Environmental | Operating temperature | -40ºC~+ 60º C |
| Storage temperature | -45ºC~+ 70ºC |
| Operating RH | 30～90% |
| Atmospheric pressure | 60～106Kpa. |
| Reliable | Certificates | RoHS compliant, CE and FCC certified |
| MTBF | >20000h |
| MTTR | < 30min |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be
confirmed) |
| Packing Details | Each unit to a suitable brown box, suitable brown boxes to a
standard export carton. |
1, Meet MIL-STD-461G with EMC (Electro Magnetic Compatibility)
etc.:
CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents,
Power leads
CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials,
Power leads
CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads
CS106 Conducted Susceptibility, Transients, Power Leads
CS112 Electrostatic Discharge Susceptibility
CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection
CS115 Conducted Susceptibility, Bulk Cable injection, Impulse
Excitation
CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal
Transients, Cables and Power Leads
RE101 25Hz -100kHz Radiated Emissions, Magnetic Field
RE102 10kHz - 18GHz Radiated Emissions, Electric Field
RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field
RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field
2, MIL-STD-810F (wide temperature, shock, vibration, humidity).
ENVIRONMENTAL ADAPTABILITY:
Operating temperature:-40℃ to +60℃
Storage temperature: :-45℃ to +70℃
Operating RH: 100%
Humidity: 93±3%
Atmospheric pressure: 60-106KpaRELIABILITY
RoHS , CE, FCC
Protection Level: IP67
Key Lifespan >5 million actuations
MTBF >20000H
MTTR <30min
