800DPI Waterproof Ruggedized Joystick Dynamic With 2 Button Mouse

    Buy cheap 800DPI Waterproof Ruggedized Joystick Dynamic With 2 Button Mouse from wholesalers

    Buy cheap 800DPI Waterproof Ruggedized Joystick Dynamic With 2 Button Mouse from wholesalers
    • Buy cheap 800DPI Waterproof Ruggedized Joystick Dynamic With 2 Button Mouse from wholesalers
    • Buy cheap 800DPI Waterproof Ruggedized Joystick Dynamic With 2 Button Mouse from wholesalers

    800DPI Waterproof Ruggedized Joystick Dynamic With 2 Button Mouse

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-B100-JS
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    800DPI Waterproof Ruggedized Joystick Dynamic With 2 Button Mouse

    IP66 dynamic waterproof ruggedized and dual function joystick with 2 button mouse



    MODEL NO. : K-TEK-B100-JS
    DESCRIPTION: IP66 dynamic waterproof ruggedized joystick with stainless steel plate and 2 sealed stainless steel mouse buttons for right and left clicking, the whole electronic controllers protected and shielded by stainless steel housing. The joystick provides users with a 3-axis joystick function, and can control the output of X (left and right) and Y axis (front and rear) by moving the handle in any direction by (25 ° ± 2 °); and surely control the Z axis output by rotating (40 ° ± 3 °). Mouse function optional. With one button on the top of the joystick (2 buttons optional), it can be set as left mouse button or right button before ex-factory. USB interface, top panel mounted solution with threaded bolts.
    Dimension: 100.0mm x 116.0mm x 41.5mm (L x W x H)
    MAIN FEATURES:
    Optical IP66 sealed joystick
    Hall joystick with dual function for optional
    With one button on the top
    Designed for harsh industrial applications, navigation controls, etc...
    Suitable for moist and dusty environments
    No special drivers required
    Key switch technology: industrial PCB with gold-on-gold key switch technology
    G.W.: 0.5KGs
    USB cable length: 1.25m
    Dimensions: 100.0mm x 116.0mm x 41.5mm (L x W x H)
    DATA
    Material: high quality SUS304 brushed stainless steel, ABS
    X, Y axis operation strength: 0~5 N, Ultimate damage strength: 12 N.
    Z axis rotation torque: 0~4 N cm, Maximum torque must not exceed 8 N cm.
    Interface: USB
    Cable length: Standard 1.25m, customized length available.
    Lifespan>20 millions actuation for joystick, >1 million actuation for mouse buttons
    Operating temperature:-40℃ to +60℃
    Storage temperature: -45℃ to +70℃
    Humidity:93±3%
    Atmospheric pressure: 60-106Kpa
    OS: All systems that support HID devices
    RELIABILITY
    RoHS , CE, FCC
    Protection Level: IP66
    Lifespan: >20 millions actuation for joystick, >1 million actuation for mouse buttons
    MTBF >20000H
    MTTR <30min

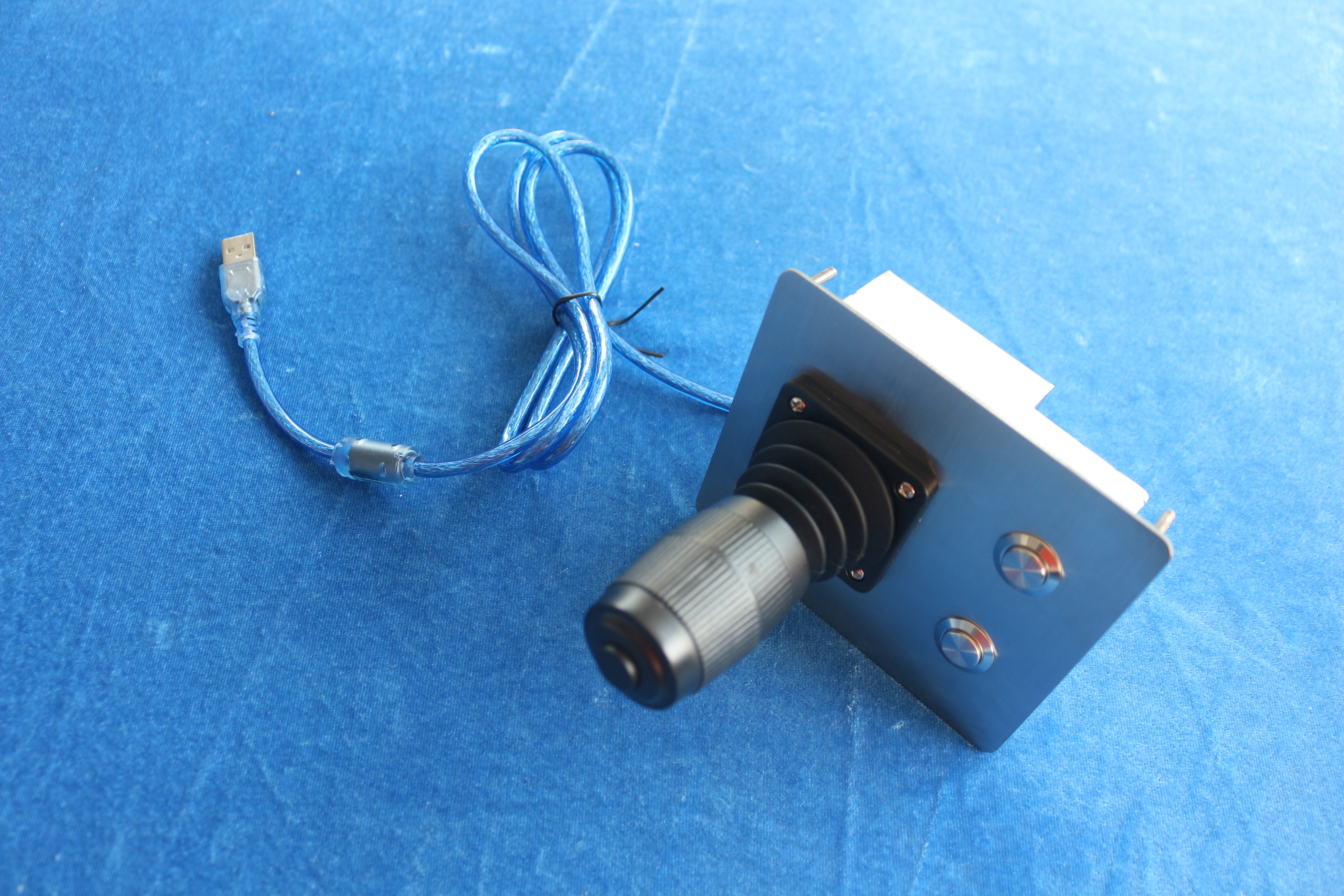

    Product Image




    Company




    FAQ

    Q: Are you trading company or manufacturer ?

    A: We are a professional manufacturer for industry/military/medical/vehicle keyboards.

    Q: How long is your delivery time?

    A: Generally it is 1-2 Weeks after payment is received. If larger quantity, delivery time would be 3-5 weeks.

    Q: Do you provide samples ?

    A: Yes, we could offer the sample of one quantity first before large quantity orders.

    Q: What is your terms of payment ?

    A: 100% payment via Paypal T/T, Western Union or Alibaba Trade Assurance.
