APPLICATION
This Keyboard is mainly targeted for use for unsupervised or
semi-supervised positions of varied access
applications, internet terminals and information kiosks at
universities, shopping malls, hotels, banks, airports,
railway-stations and other public areas, ticket vending machines,
gas stations, cash machines (ATMs/CDM),
Internet public phones etc.
MAIN FEATURE
The keyboard can be dynamic washable with water and other liquids,
it can work well even under direct water pouring
on the keyboard.
Imposing stainless steel design, specially designed keyboards meet
the highest demands with regard to
design, functionality, longevity and high protection level.
Stainless steel fascia and key-tops guard willful destruction,
vandal-proof, against corrosion, weather-proof
especially under extreme climatic conditions, water proof/dirt
proof, operation under hostile environments.
Waterproof execution according to IP67 protection from top panel,
top stainless steel plate with threaded
bolts for easy tightly mounting to enclosure or panel.
An excellent tactile feel with short stroke switches and allow
users to achieve stable and accurate data input
without any noise. With firm tactile perception for comfortable
operation
Metal keys are protected against twisting and levering which can
not be dislodged from front, or defaced
removing key covers.
Ease of customizing with multiple languages, to accommodate foreign
or custom variants.
Complete electronic modules including controller in close
consultation with our customers are available.
PS/2, USB connection plug-and-play with PC via PC existing OS
driver, no needing of install separate driver.
MECHANICAL DATA
Actuator/keys: 83 keys, super quality SUS304 brushed stainless
steel
Key top style: Non-protuberant rectangular keys, laser engraved &
etched legends & raised braille on keys are available
Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for
enter key, 14.0mm x 70.0mm for space bar.
Key travel: 0.45mm
Actuation Force: 3.2N+/-0.1N for key 14.0mm x 14.0mm (pressure
point) 4N+/-0.1N for key 14.0mm x 28.0mm(pressure point)
Switch life: more than 1 million of operations.
Front Plate: 1.5mm thickness super quality brushed stainless steel
Back Plate: 1.5mm thickness super quality brushed stainless steel
Tracker ball: 38.0mm stainless steel optical trackball module with
800 DPI resolutions
G.W.: 1.60KGs
ELECTRICAL DATA
| Supply Voltage:
| +5V DC +/-5%
|
Current Rating:
| 30mA for keyboard without backlight
|
Current Rating:
| 300mA for keyboard with backlight on
|
EMC Standard:
| EN 55032:2015, EN 55035:2017
|
Lifespan:
| > 5 years
|
Switch Contact Material:
| Gold-on-Gold key switch technology PCB
|
Interface:
| PS2, USB available.
|
OS:
| All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be
confirmed)
|
ENVIRONMENTAL ADAPTABILITY
| Operating temperature:
| -20oC to +60oC
|
Storage temperature:
| -30oC to +70oC
|
Operating RH:
| 30-90%
|
Atmospheric pressure:
| 60-106Kpa.
|
Saline mist:
| 96 hours, IEC 60512-6
|
Damp heat test at + 40oC:
| 21 days, IEC 60512-6
|
Dry heat test at + 85oC:
| 10 days, IEC 60512-6
|
RELIABILITY
| Protection Level:
| IP67
|
Vandal resistant:
| IK09
|
Key Lifespan:
| >1 million actuations
|
MTBF
| >20000H
|
MTTR
| <30min
|

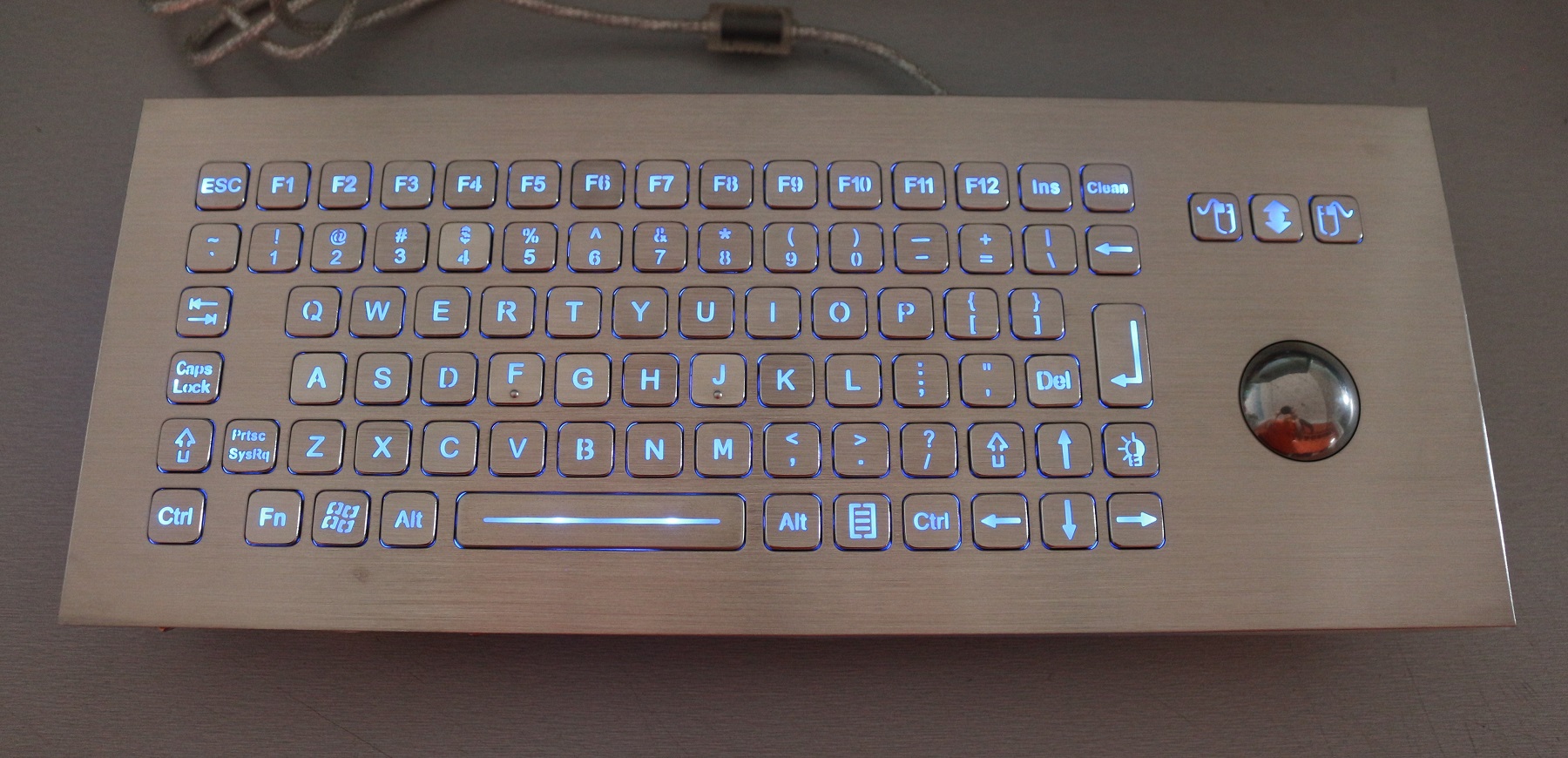

Product Image:
