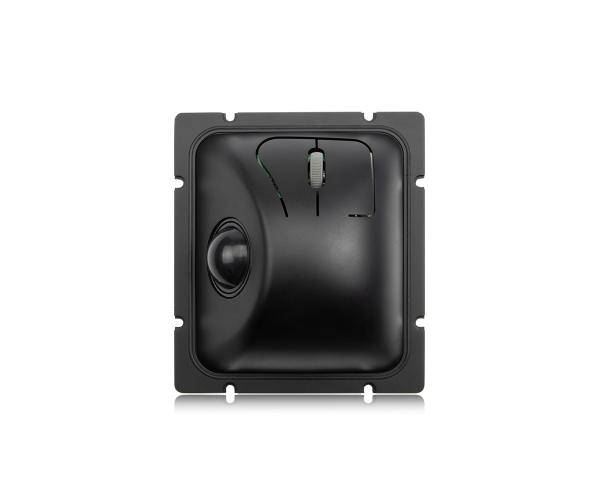

    400DPI Military Trackball Industrial Wired Mouse With Aviation Plug

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-M134-38-MTB-AVB-151B
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    400DPI Military Trackball Industrial Wired Mouse With Aviation Plug


    Military EMC IPX6 38mm Black Harden Resin Trackball


    MODEL NO. : K-TEK-M134-38-MTB-AVB-151B
    DESCRIPTION: IPX6 rated Military trackball with 38.0mm (1.5’') vandal proof IP65 mechanical black harden resin ball module with 400DPI resolutions, with 3 mouse buttons with OMRON key switch technology for right & left clicking, and middle wheel for scrolling up and down, designed to meet MIL-STD-461G and MIL-STD-810F, military level, anti-interference, and low radiation etc., high quality black titanium electroplated aluminum back plate to be scratch proof and anti-salt mist. Rear panel mounted solution with mounting holes. Interface aviation plug with model J14A-9ZJB.
    INDUSTRIAL TRACKBALL DIMENSIONS: 107.3mm x 132.6mm (front panel)
    TRACKBALL MAIN FEATURE :
    -Emulates most popular mice - uses existing mouse driver and mouse software Interfaces for most Workstations and computers.
    -Rate sensitive dynamic resolution provides for accelerated movement of the cursor when the ball is moved fast, while retaining one-pixel positioning accuracy when the ball is moved slowly.
    -Widely used in military application includes army, force, navy, marine etc

    TRACKBALL POINTING DEVICE TECHNICAL SPECIFICATION:

    MECHANICAL DATA
    Keys2 keys
    Key switchOmron micro key switch technology
    Key travel1.20mm±0.10mm
    Actuation Force1.2N±0.2N
    Trackball38mm ergonomic handheld thumb ball mouse
    Trackball lifespan> 2 millions scrolling
    G.W.0.6KGs
    ELECTRICAL DATA
    Supply VoltageDC +5V±5%
    Current Rating17mA
    EMC StandardMIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity)
    Lifespan> 5 years
    InterfaceAviation plug, USB available
    Cable lengthStandard 2.0m, customized length available
    OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
    Meet MIL-STD-461G with EMC (Electro Magnetic Compatibility) etc:
    CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads
    CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads
    CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads
    CS106 Conducted Susceptibility, Transients, Power Leads
    CS112 Electrostatic Discharge Susceptibility
    CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection
    CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation
    CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads
    RE101 25Hz -100kHz Radiated Emissions, Magnetic Field
    RE102 10kHz - 18GHz Radiated Emissions, Electric Field
    RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field
    RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field
    MIL-STD-810F (wide temperature, shock, salt mist, vibration, salt mist, fungus, humidity).
    ENVIRONMENTAL ADAPTABILITY
    Operating temperature-40℃ to +75℃
    Storage temperature-45℃ to +85℃
    Operating RH100%
    Atmospheric pressure60-106Kpa
    Saline mist96 hours, IEC 60512-6
    Damp heat test at +40℃21 days, IEC 60512-6
    Dry heat test at +85℃10 days, IEC 60512-6
    RELIABILITY

    RoHS, CE, FCC, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity)

    Protection LevelIPX6
    Key Lifespan>1 million actuations
    MTBF>20000H
    MTTR<30min
    APPLICATIONSVehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.
