    PS2 Sealed Ruggedized Backlit Keyboard With Matrix FPC Cable

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-M284-AC-FN-BL-OEM
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    PS2 Sealed Ruggedized Backlit Keyboard With Matrix FPC Cable

    Backlit Keyboard Sealed And Ruggedized With Matrix FPC Flex Cable


    DESCRIPTION:

    1:89 keys IP67 dynamic sealed and ruggedized silicone rubber keyboard with matrix FPC flex cable

    2:Carbon-on-gold key switch technology with long stroke (1.50mm)

    3:With extremely good tactile feeling for fast and accurate data input without any noise

    4:With durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment

    5:Top panel mounted with top ruggedized industrial silicone cover & military matrix PCB for ruggedized structure and easy mounting and sealing, adjustable industrial backlight included

    6:Military level:

    7:Dimensions: 284.00mm x 109.00mm (L x W )

    MECHANICAL DATA:

    Key

    89keys

    Switch Contact Material
    Carbon-on-Gold key switch technology with gold PCB.
    Current Rating
    30mA (non-backlight), 300mA (with backlight on)
    Key top style
    Protuberant rectangular keys with tactile feeling.

    EMC Standard

    EN 55032:2015 EN 55035:2017

    MIL-STD-810F (wide temperature, shock, vibration, humidity)

    Lifespan

    5 years

    Cable length:

    Standard 2.0m, customized length available.

    Interface

    matrix FPC, PS2 & USB optional.

    G.W.

    0.5KGs

    Dimensions:

    284.00mm x 109.00mm (L x W )

    Key life

    5 millions
    APPLICATIONS:
    This ruggedized and compact design keyboard can be good for working in low-light areas, it is also available with optional LED backlighting.This keyboard is ideal for below wide applications:
    MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
    MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
    MILITARY: Army, Navy, Air force
    INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses
    MAIN FEATURES:
    keyboard with adjustable white color backlighting, while backlighting makes this keyboard ideal for aviation or vehicle applications where night vision goggles are necessary.
    Keyboard provides full-size versatility in a rugged, compact design, rugged construction for reliable functionality.
    The keyboard lacks the crevices found between the keys of a regular keyboard, which is protected against dust, dirt, grease and corrosive liquidsX,
    which means it can withstand directed hose water, disinfectants, environmental contaminants and heavy industrial use.
    Special durable-coating for excellent mechanical and chemical resistance.
    With firm tactile key feel, key travel 1.50mm key travel.
    Actuation Force: Square key: 1.2N+/-0.1N Rectangular key: 2N+/-0.1N
    Ease of customizing with multiple languages, to accommodate foreign or custom variants.
    FPC for connecting separate electronics controller.
    Enclosure: industrial silicone
    Key life: 5 millions

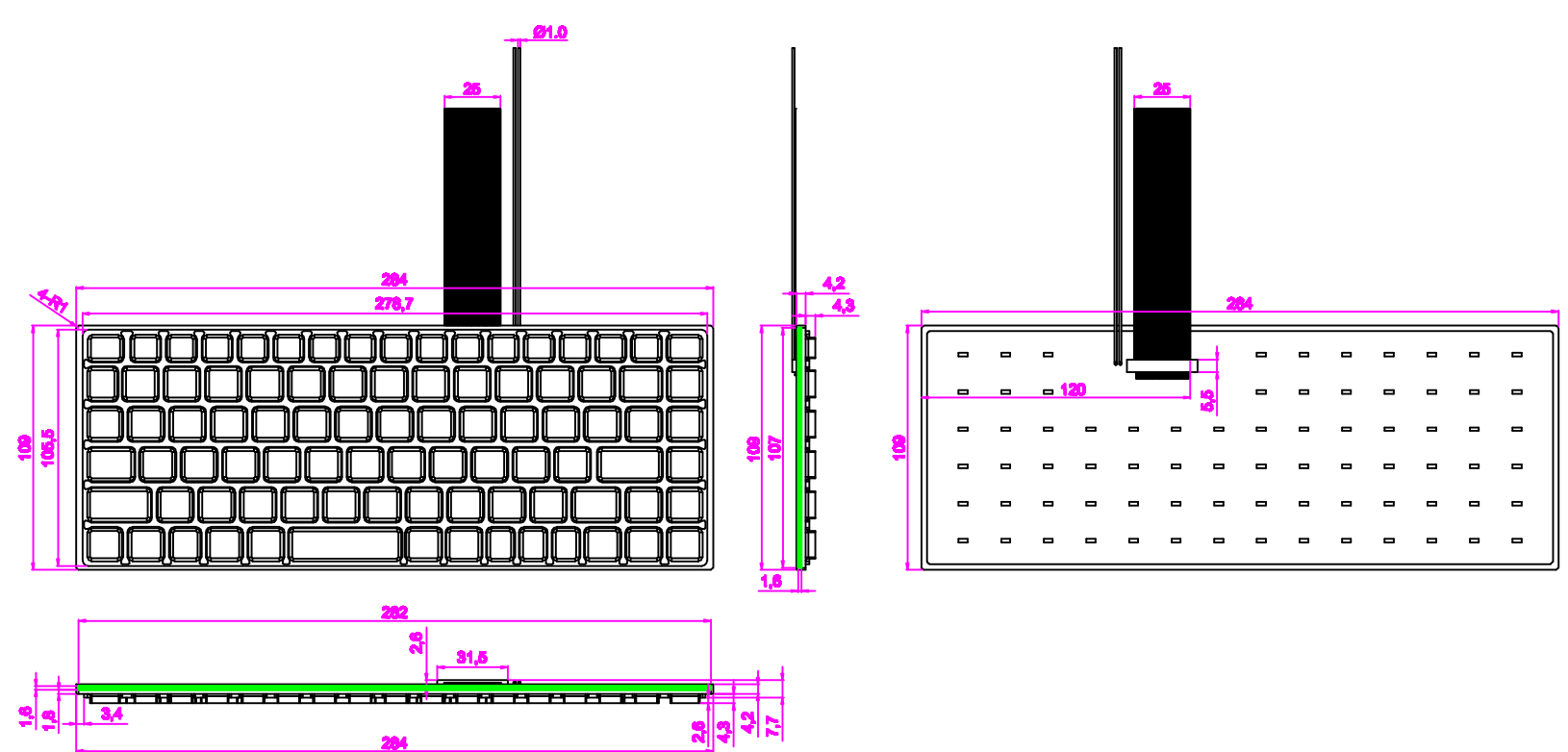

    Mechanical drawing



    Actual photos
