    Compact Format Vandal Proof 16 Keys Metal Keypad With Dot Matrix

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-B60-16-KP-AC-DWP
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2-3 weeks upon payment confirmed
    • Product Details
    • Company Profile

    Compact Format Vandal Proof 16 Keys Metal Keypad With Dot Matrix


    Vandal Proof Industrial Keypad 16 Keys Compact Format IP65 With Dot Matrix Circuit


    DESCRIPTION: 16 keys compact format IP65 washable vandal proof stainless steel industrial Compact Format Numeric keypad with dot matrix circuit with socket on the back panel of PCB for connecting electronics controller, industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, high quality durable rear stainless steel plate with mounting holes and water-tight gasket for easy mounting and tightening to enclosure or panel. With Industrial Backlight (red/blue/white/green) optional. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc.

    DIMENSIONS: 60.0mm × 60.0mm (front panel)


    METAL KEYPAD ELECTRICAL DATA
    Supply VoltageDC +5V±5%
    Current Rating30mA
    EMC StandardEN 55032:2015 EN 55035:2017
    Lifespan> 5 years
    Switch Contact MaterialGold-on-Gold key switch technology PCB
    InterfaceDot matrix
    OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos-To be confirmed).
    MECHANICAL DATA
    Front Plate1.5mm thickness super quality brushed stainless steel
    Back Plate1.0mm thickness super quality stainless steel
    Actuator/keys16 keys, 1.50mm thickness super quality SUS304 brushed stainless steel flat key.
    Key top styleNon-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
    Key Size10.0mm x 10.0mm for normal keys
    Key Travel0.45mm±0.05mm
    Actuation Force2.5N±0.2N for key 10.0mm x 10.0mm (pressure point)
    Switch Lifemore than 1 million of operations
    G.W.0.40KGs
    ENVIRONMENTAL ADAPTABILITY
    Operating Temperature-20℃ to +65℃
    Storage Temperature-30℃ to +75℃
    Operating RH30-90%
    Atmospheric Pressure60-106Kpa
    Saline Mist96 hours, IEC 60512-6
    Damp heat test at +40℃21 days, IEC 60512-6
    Dry heat test at +85℃10 days, IEC 60512-6
    MINI KEYPAD RELIABILITY
    RoHS Compliant, CE and FCC, ESD
    Protection LevelIP65 dynamic (front panel)
    Vandal ResistantIK09
    Key Lifespan>1 million actuations
    MTBF>20000H
    MTTR<30min
    APPLICATIONS

    Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.

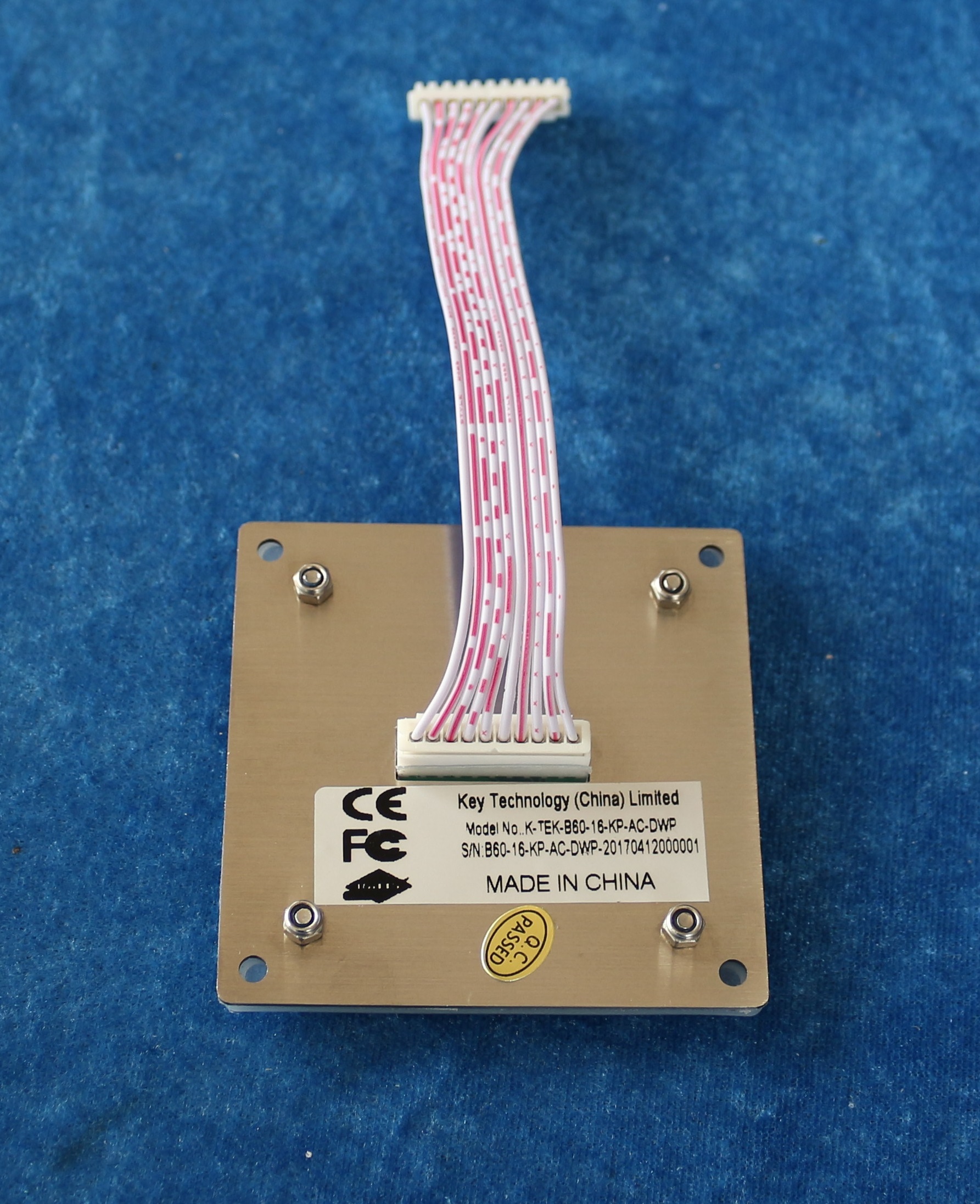

    INDUSTRIAL KEYPAD Actual photos:
