    Military Grade Industrial Keyboard with FN Function Keys and Optical Trackball Mouse


    Industrial Keyboard with FN Function Keys and Optical Trackball Mouse for Military


    Model NO: K-TEK-M425-OTB-FN-BL-ML-BT

    DESCRIPTION FOR MILITARY KEYBOARD:

    87 keys IP65 dynamic sealed & ruggedized silicone rubber industrial keyboard, 12 FN function keys (F1, F2...F11, F12) on the top line for easy operation, integrated with a conventional mouse with middle wheel, left/right buttons as well as one IPX6 rating 34mm optical trackball mouse at 500~1000 DPI resolution for fast cursor moving, industrial PCB with carbon-on-gold key switch technology with 1.50mm key stroke with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface treatment to withstand most chemicals and liquids under harsh environment, FN+ CLEAN combination key for easy cleaning via locking/disable the entire keyboard without needing to take away the keyboard from PC, high quality durable black titanium electroplated on the top stainless steel plate, with sinking holes for panel mount to user's device. Adjustable industrial white backlight included, which meets MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.), and MIL-STD-461G (EMC, EMI, EMS, ESD) OPTIONAL.

    DIMENSIONS: 425.0mm x 150.0mm (Front Panel)


    MECHANICAL DATA
    Key87 keys + 3 mouse keys
    Key top styleProtuberant rectangular keys with tactile feeling.
    Key travel1.50mm±0.10mm
    Actuation Force1.5N±0.2N (pressure point )
    Switch lifemore than 5 million of operations.
    G.W.2.50KGs
    ELECTRICAL DATA
    Supply VoltageDC +5V±5%
    Current Rating50mA when backlight is off, 300mA with backlight on
    EMC StandardEN 55032:2015 EN 55035:2017
    Meet MIL-STD-461G (EMC, EMI, EMS, ESD): (optional)
    1CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads
    2CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads
    3CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads
    4CS106 Conducted Susceptibility, Transients, Power Leads
    5CS112 Electrostatic Discharge Susceptibility
    6CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection
    7CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation
    8CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads
    9RE101 25Hz -100kHz Radiated Emissions, Magnetic Field
    10RE102 10kHz - 18GHz Radiated Emissions, Electric Field
    11RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field
    12RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field
    MIL-STD-810F (wide temperature, shock, vibration, humidity etc.)
    Lifespan> 5 years
    Switch Contact Materialcarbon-on-gold key switch technology
    InterfacePS2, USB or aviation plug available
    OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
    ENVIRONMENTAL ADAPTABILITY
    Operating temperature-20℃ to +65℃
    Storage temperature-30℃ to +75℃
    Saline mist96h, IEC60512-6
    Damp heat test at +40℃21 days, IEC 60512-6
    Dry heat test at +85℃10 days, IEC 60512-6
    Humidity100%
    Atmospheric pressure60-106Kpa
    RELIABILITY
    RoHS compliant, CE and FCC certified, MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.)
    Protection LevelIP65 dynamic (front panel)
    Key Lifespan>5 million actuations
    MTBF>20000H
    MTTR<30min
    APPLICATIONVehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

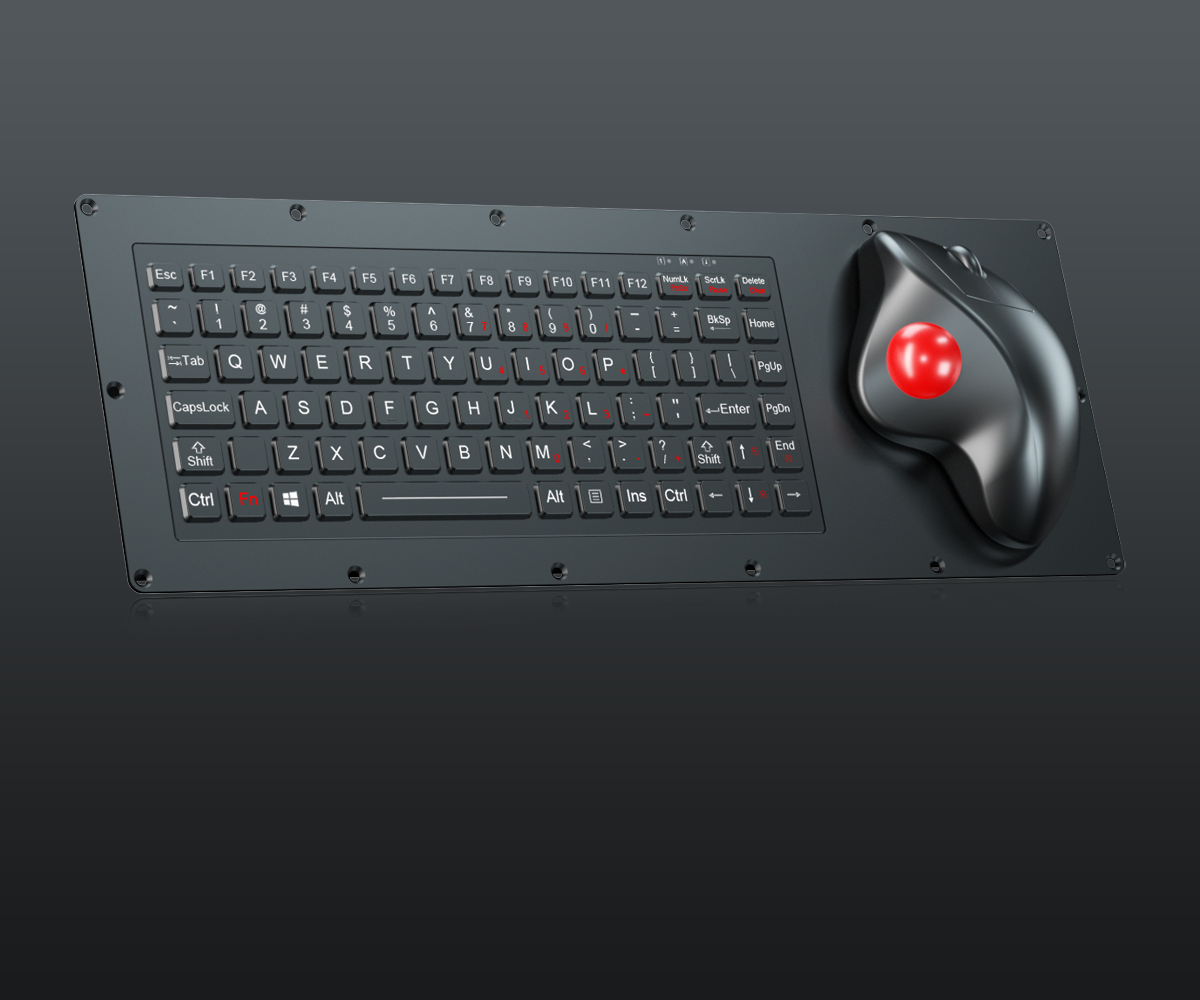

    Actual Photos For Military Keyboard
