    Chemical And Liquid Resistant Industrial Membrane Keyboard With Anti-Microbial Surface

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-D405KP-FN-SW
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2-3 weeks upon payment confirmed
    • Product Details
    • Company Profile

    Chemical And Liquid Resistant Industrial Membrane Keyboard With Anti-Microbial Surface


    Chemical and Liquid Resistant Industrial Membrane Keyboard with Anti-Microbial Surface


    Description For Industrial Membrane Keyboard : 107 keys IP65 dynamic rated industrial membrane keyboard with integrated numeric keypad and function keys on the upper line, industrial PCB with OMRON switch technology with short stroke 0.45mm with extremely good tactile feeling for reliable data input, with “FN+Lock” combination key for easy cleaning via lock/disable the entire keyboard without needing to take the keyboard from PC, surface mounted extremely flush with anti-microbial, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments, ruggedized stainless steel back plate with brushed treatment, top panel mounted solution with threaded bolts.

    Industrial Membrane Keyboard Dimensions: 405.0mm x 155.0mm (L x W)


    MECHANICAL DATA
    Number of keys107 keys
    Key switch TechnologyOMRON switch technology with short stroke 0.45mm for stable and accurate data input
    Actuation Force2.0N±0.2N(press point)
    Key Travel0.45±0.05mm
    Mounting TypeTop panel mounting
    ColorsBlack
    G.W.1.20KGs
    Switch lifemore than 1 million of operations
    ELECTRICAL DATA
    Supply VoltageDC +5V±5%
    Current Rating30mA
    EMC StandardEN 55032:2015 EN 55035:2017
    Lifespan> 5 years
    InterfacePS2, USB available
    OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
    ENVIRONMENTAL ADAPTABILITY
    Operating temperature-20℃ to +65℃
    Storage temperature-30℃ to +75℃
    Saline mist96h, IEC60512-6
    Damp heat test at +40℃21 days, IEC 60512-6
    Dry heat test at +85℃10 days, IEC 60512-6
    Humidity100%
    Atmospheric pressure60-106Kpa
    RELIABILITY
    RoHS compliant, CE and FCC certified
    Protection LevelIP65 dynamic (front panel)
    Key Lifespan>1 million actuations
    MTBF>20000H
    MTTR<30min
    APPLICATIONSIndustrial, marine, food and beverage, processing factory, medical and pharmaceutical, numerical control machine etc.

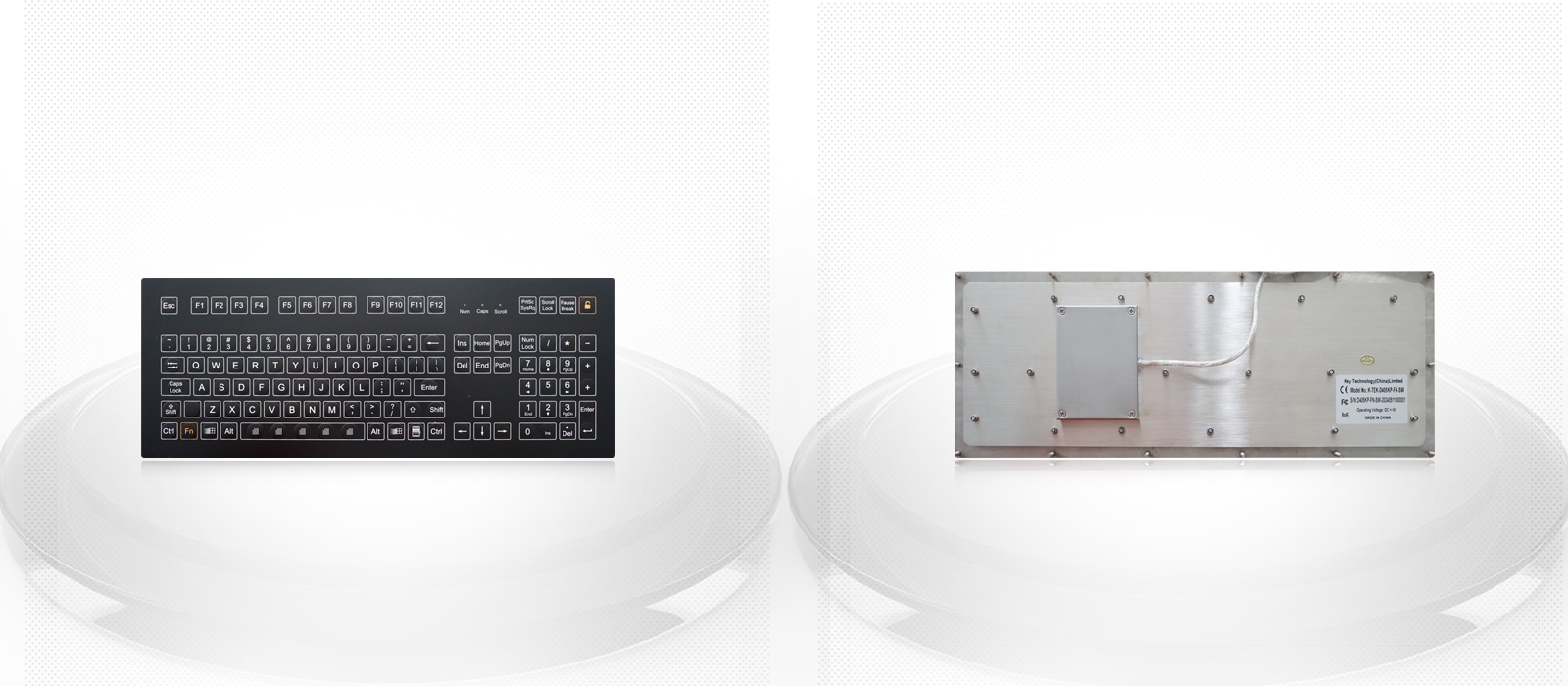

    Industrial Membrane Keyboard Actual Photos
